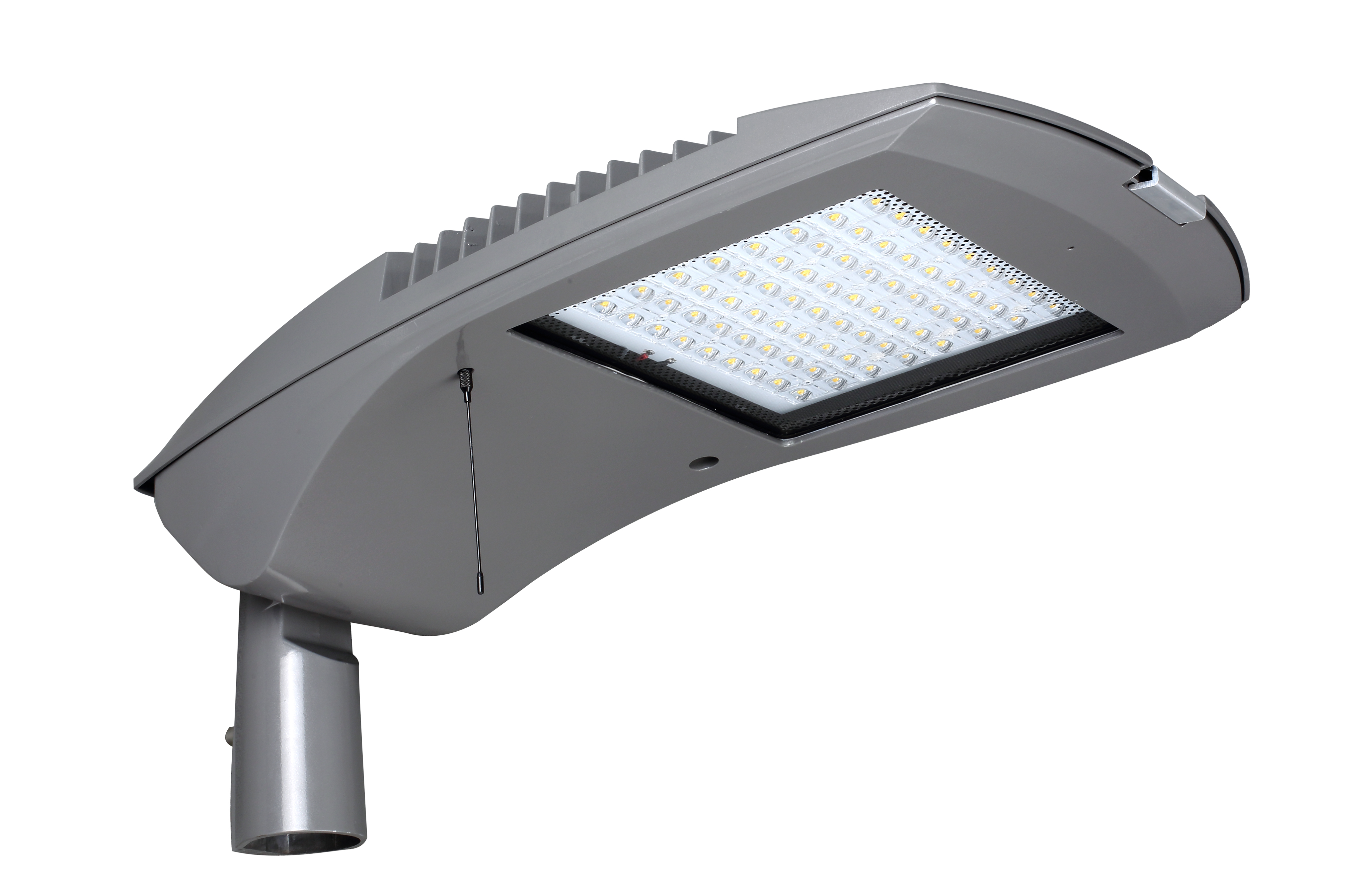

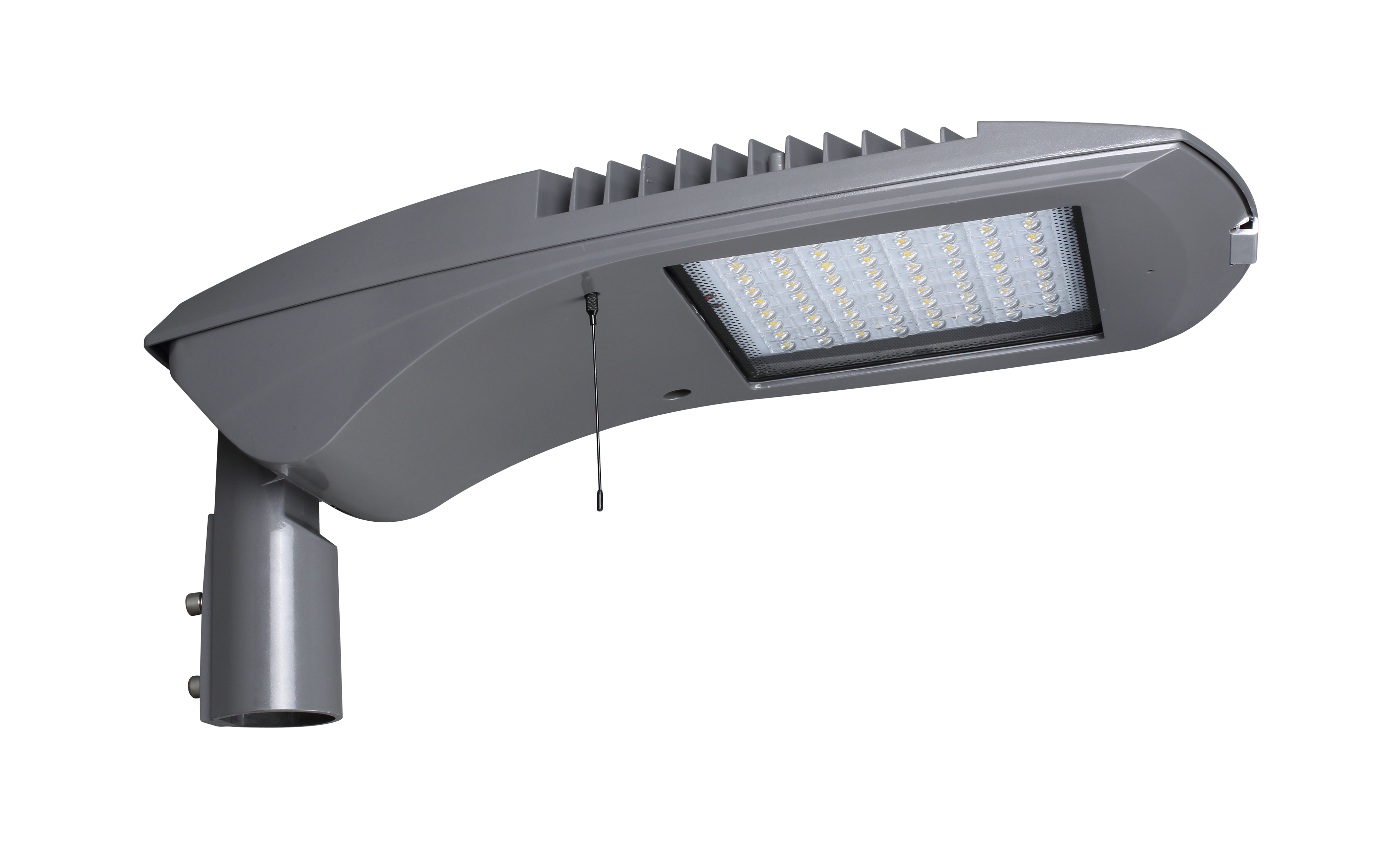

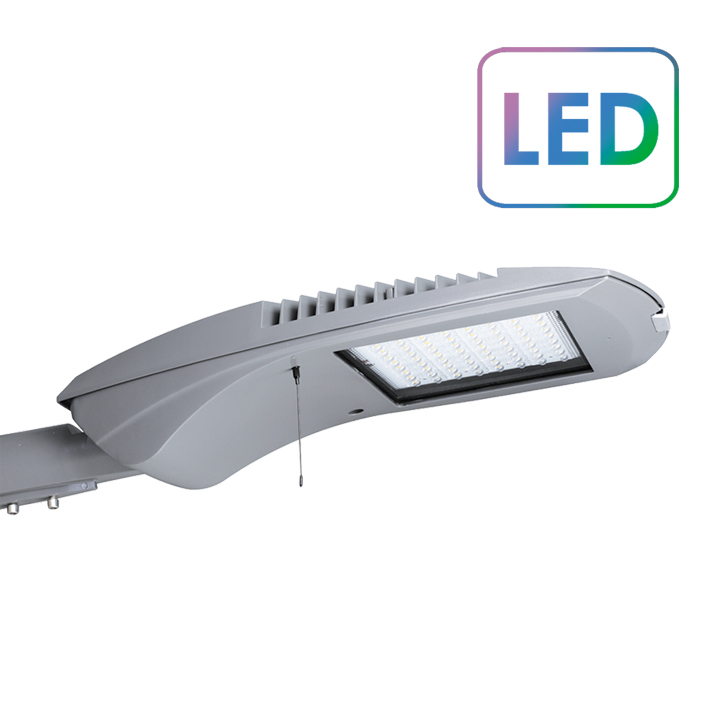

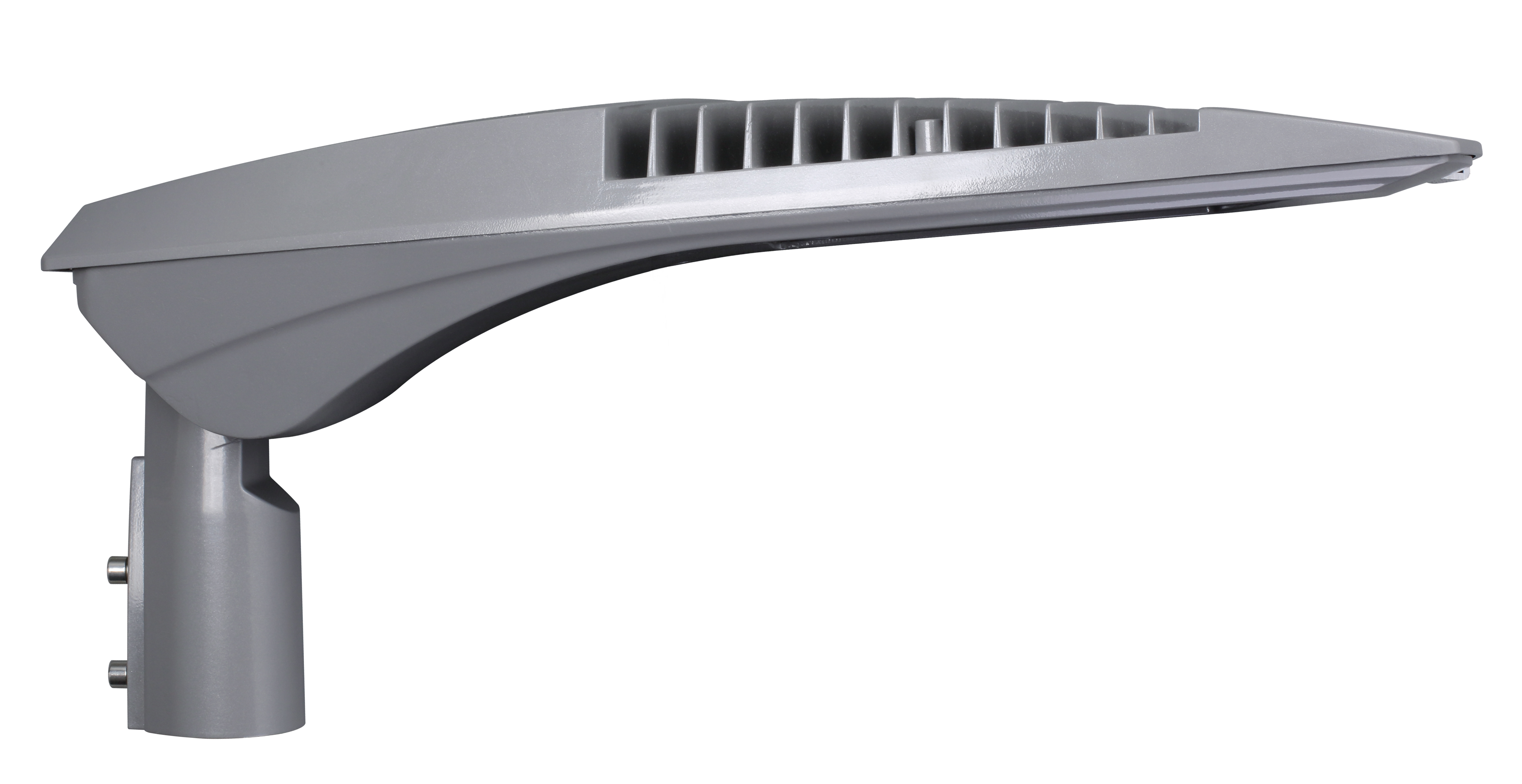

Viking DKS 752

DKS 752

Benefits:

Ensure high energy efficiency in combination with moderate initial investments in infrastructure development
Modest modern design of Viking luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light colour temperatures satisfies all demands for city street lighting.
The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.

Downloads:

Photometric LDT

Type	VIKING DKS 752
Light source	LED module
Driver	Driver included
Mains voltage index	230 – 240 V / 50 – 60 Hz
Power	18-81W depending on type
Luminaire efficacy	>0,95
Luminous flux	2000-10200 lm depending on type
Color rendering index	75 – 80
Light Color	3000 – 5700К
Surge protection	6 kV standard 10kV optional
Maintenance of lumen output - L90B10	100000 hours

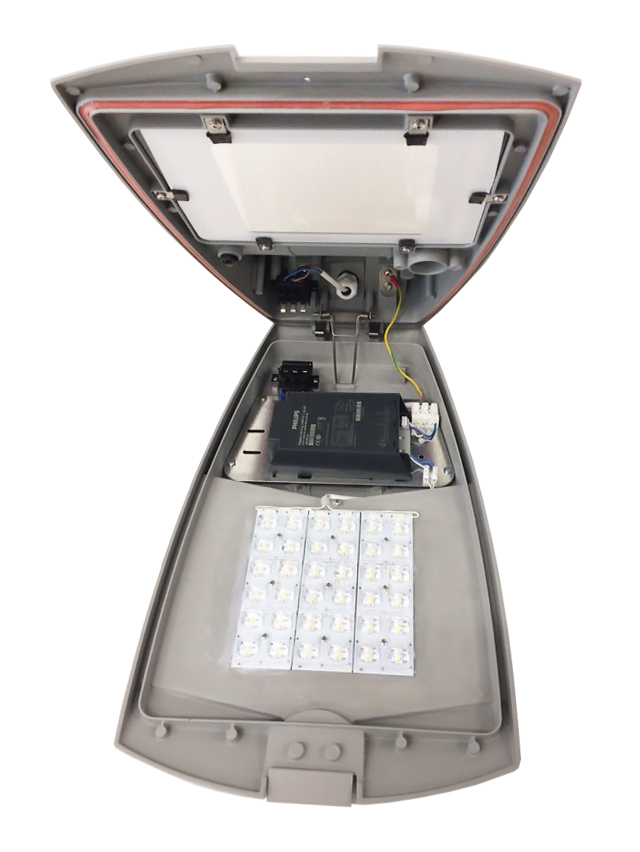

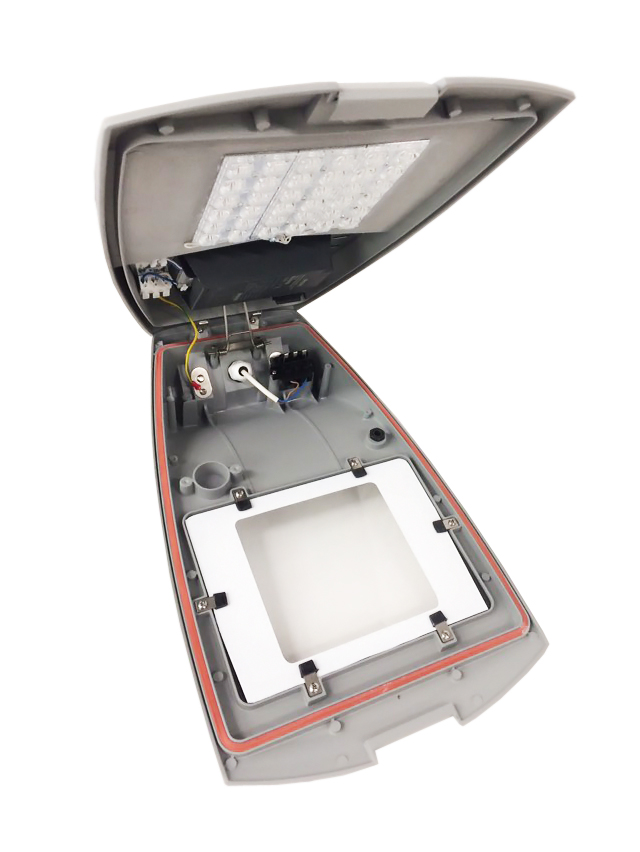

Maintenance	Opening without tools, safety switch disconnects power on opening – Safe Maintenance Technology (SMT)
Optic	Wide beam, Narrow beam, Assymetric
Optical cover	Glass, flat as standard, PC optional

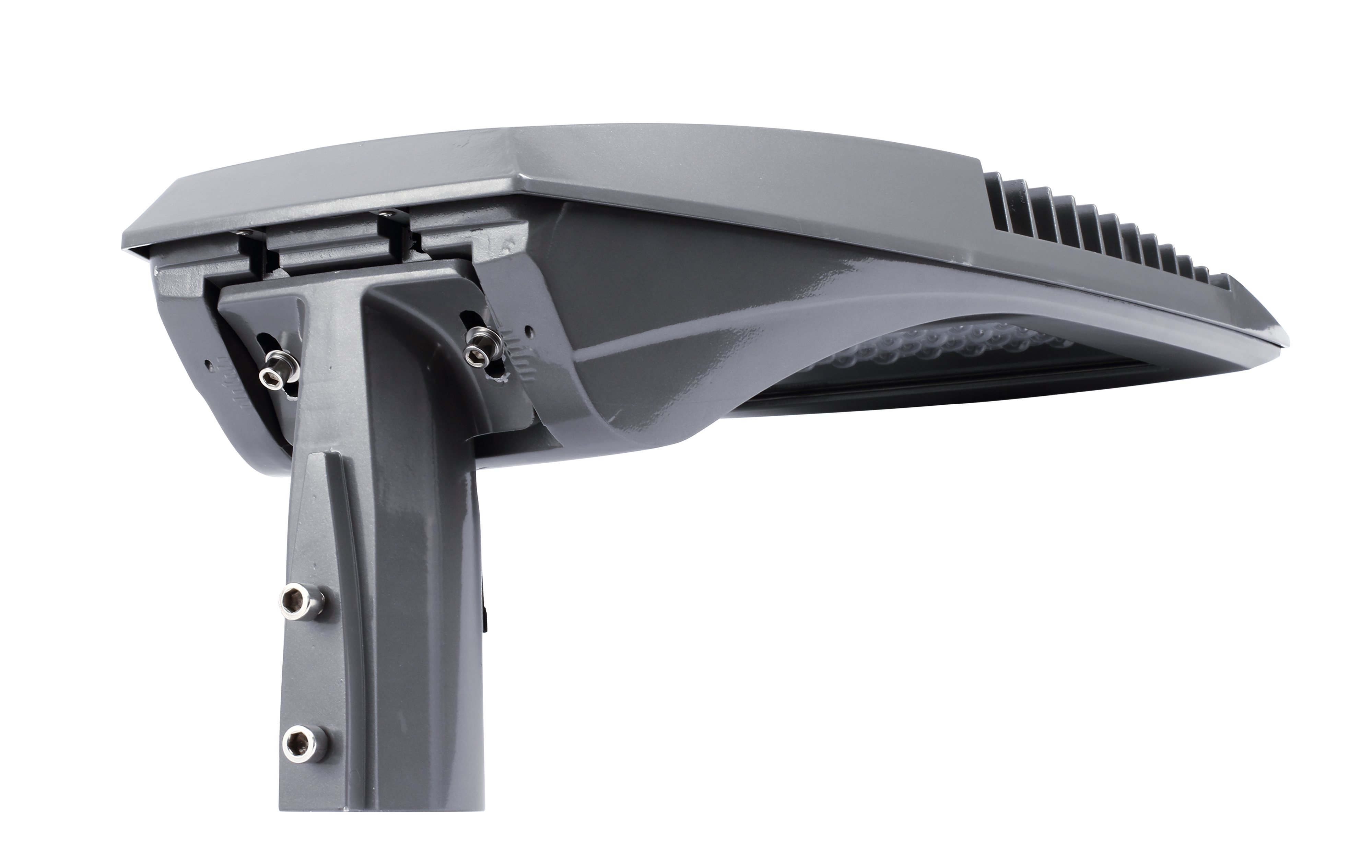

Body material	Housing: high-pressure, die-cast aluminium Side-entry mounting: lateral entry O40/60mm
Installation	Recommended mounting height: 4-8 m
Color	RAL 7035
Impact resistance	IK08 as standard, IK09 optiona
Ingress protection	IP66
Electrical safety	Class I, or II

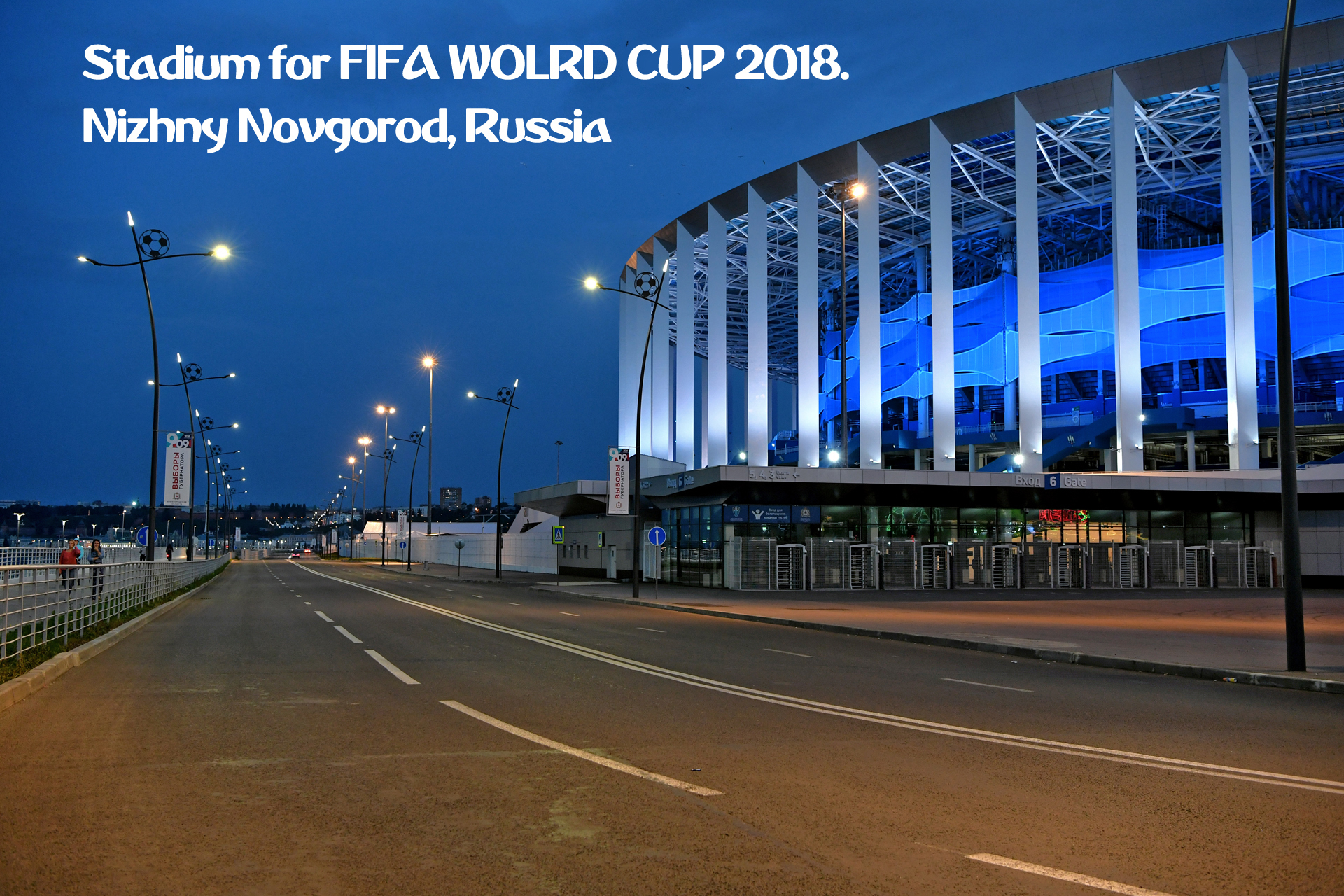

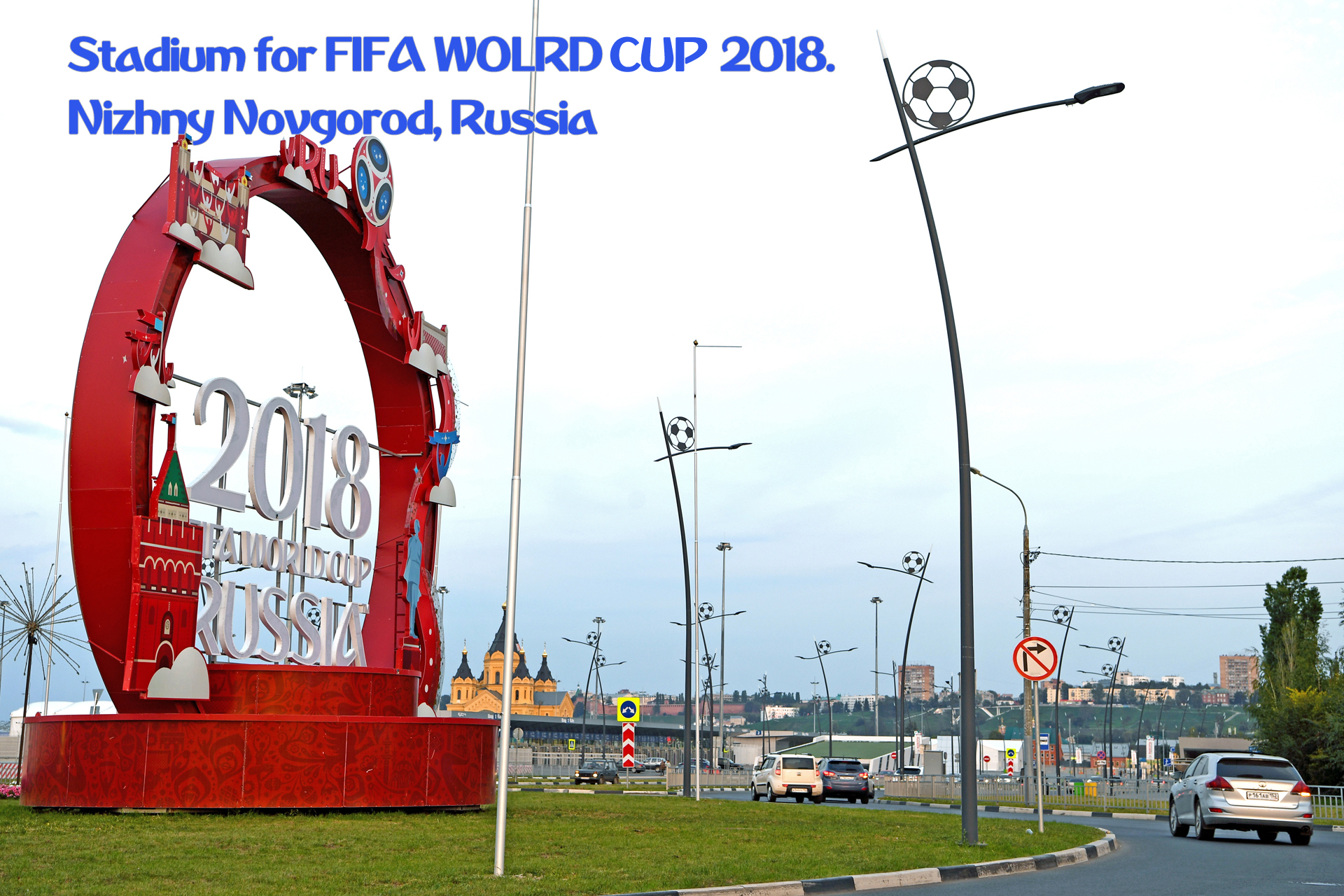

Application	• Urban road and streets • Residential roads and paths • Pedestrian crossroads

Description

Order code	Description	System Initial luminous flux, lm	Power, W	Light Color
600151421040	DKS752 LED060 48W 730 I 40-60 WB	6000	48	3000
600151421041	DKS752 LED060 48W 730 I 40-60 NB1	6000	48	3000
600151421042	DKS752 LED060 48W 730 I 40-60 NB2	6000	48	3000
600151421048	DKS752 LED088 73W 730 I 40-60 WB	8800	73	3000
600151421049	DKS752 LED088 73W 730 I 40-60 NB1	8800	73	3000
600151421050	DKS752 LED088 73W 730 I 40-60 NB2	8800	73	3000
600151421298	DKS752 LED099 81W 730 I 40-60 WB	9900	81	3000
600151421299	DKS752 LED099 81W 730 I 40-60 NB1	9900	81	3000
600151421300	DKS752 LED099 81W 730 I 40-60 NB2	9900	81	3000
600151421301	DKS752 LED123 99W 730 I 40-60 WB	12300	99	3000
600151421302	DKS752 LED123 99W 730 I 40-60 NB1	12300	99	3000
600151421303	DKS752 LED123 99W 730 I 40-60 NB2	12300	99	3000
600151421037	DKS752 LED060 47W 740 I 40-60 WB	6000	47	4000
600151421038	DKS752 LED060 47W 740 I 40-60 NB1	6000	47	4000
600151421039	DKS752 LED060 47W 740 I 40-60 NB2	6000	47	4000
600151421304	DKS752 LED069 55W 740 I 40-60 WB	6900	55	4000
600151421305	DKS752 LED069 55W 740 I 40-60 NB1	6900	55	4000
600151421306	DKS752 LED069 55W 740 I 40-60 NB2	6900	55	4000
600151421045	DKS752 LED091 73W 740 I 40-60 WB	9100	73	4000
600151421046	DKS752 LED091 73W 740 I 40-60 NB1	9100	73	4000
600151421047	DKS752 LED091 73W 740 I 40-60 NB2	9100	73	4000
600151421044	DKS752 LED069 55W 757 I 40-60 ASR	6900	55	4000
600151421052	DKS752 LED091 73W 757 I 40-60 ASR	9100	73	4000
