BTLED-G4006 (1)

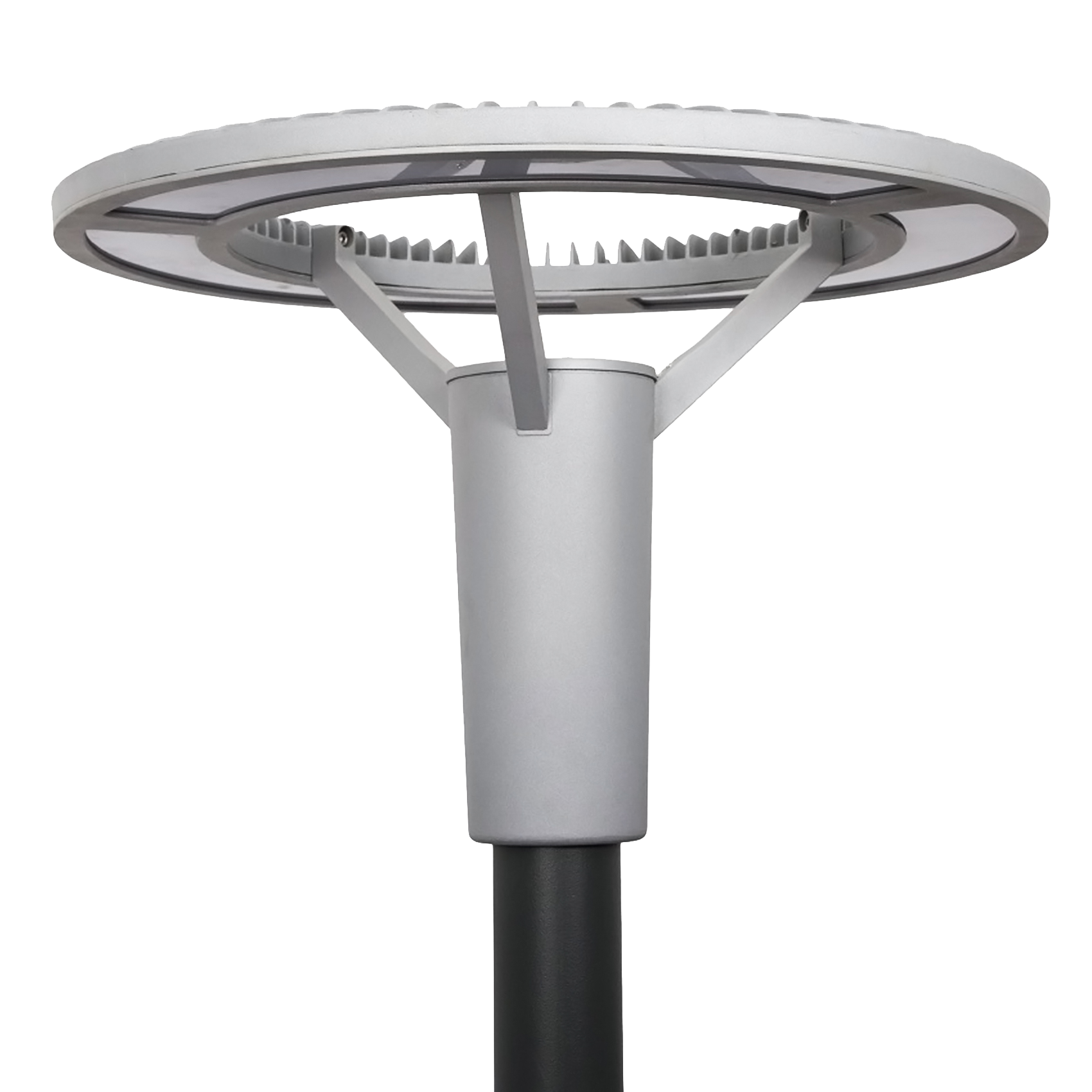

ROUND URBAN LIGHT

ip66

220

Downloads:

Photometric LDT

Category: Urban lighting Tags: urban, Urban road and streets

FAMILY INFORMATION
PRODUCT FAMILY RANGE

TYPE

Product type	DPS 255

ELECTRICAL PARAMETERS

Driver efficiency nominal	up to 0.92
Driver failure ratio	<10% at 50000 or 100000 hours depends on type
Driver type	Built in PHILIPS Xitanium Outdoor driver
Electrical isolation class IEC	Safety class I as a standard, II on request
Input Frequency	50-60 Hz
LED current ripple %	<(4-30) depends on type
Mains voltage index	230 – 240 V / 50 – 60 Hz
Nominal input voltage range	202..254 or 198…264, depends on type
Power factor nominal	up to 0.98
Power range	40 – 60 W depending on type
Surge protection	4/6 kV

LIGHTING PERFORMANCE

CCT	3000K, 4000K, 5700K
Color rendering index, CRI	>70
Initial color shift, SDCM	<5
Light distribution	Wide beam as standard.
Light source	Brilux
LOR	up to 0,89
Luminaire lumen output range, lm	4200 – 6300 lm depending on type
Photobiological safety	RG1
Type of optic	Low ageing PMMA lenses by LEDIL

CONSTRUCTION AND MATERIALS

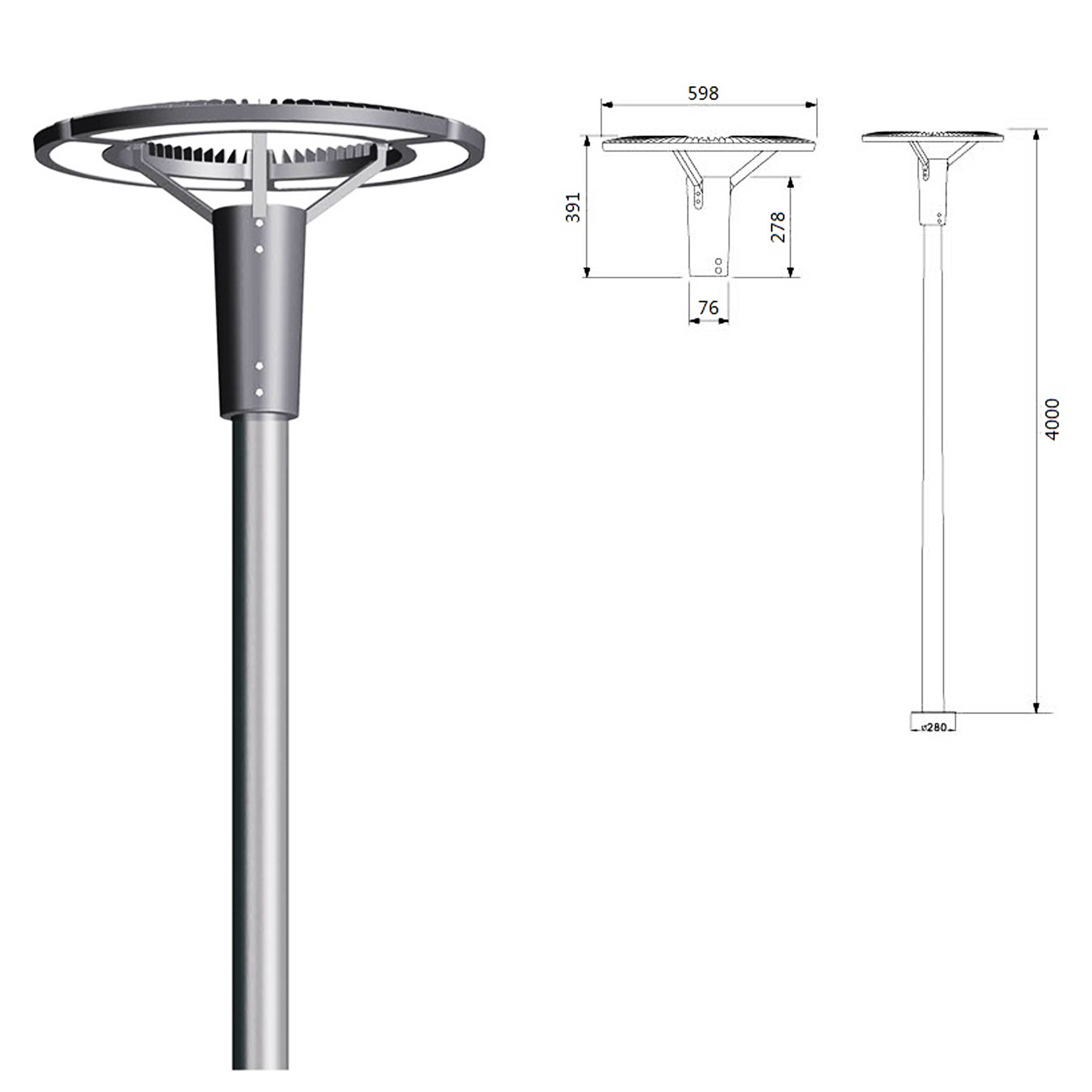

Dimensions LxH	445×590
Housing colour	Graphite Grey RAL7024

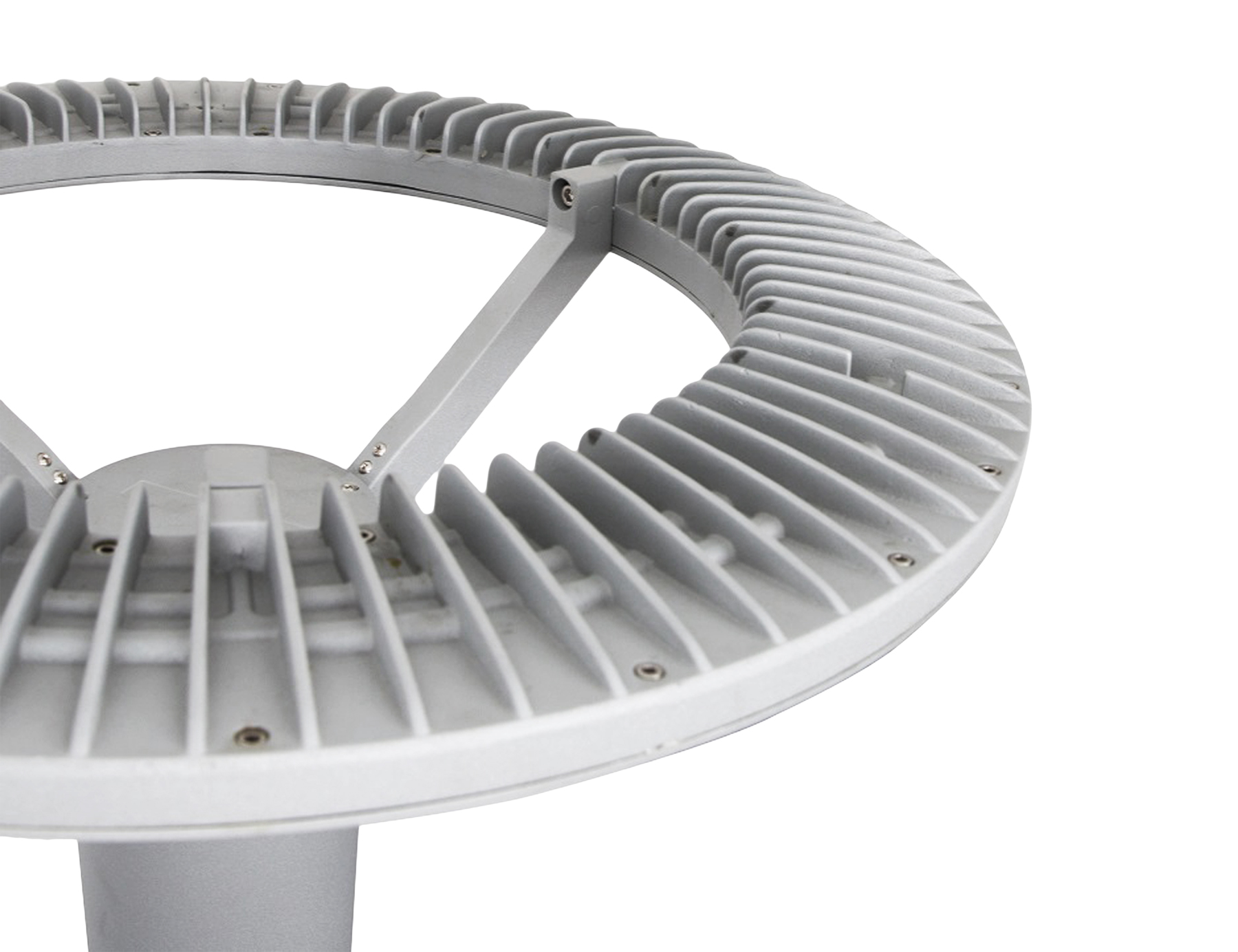

Housing material	Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
Impact resistance	IK09
Ingress protection	IP66
Installation options	Post top installation 60-76mm
Optical cover	Extra clear toughened flat glass
Windage area	no more 0,018sq.m above/below and 0,012sq.m side position

OPERATION AND MAINTENANCE

Electrical connection	0.4m cable with IP66 connector as standard
Maintenance	Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only
Maintenance of lumen output	100000 hours – L90B10
Operating temperature range	-40…+35 C, typical for exact values
Application	• Parks • Squares • Boulevards • Embankments • Recreation areas

MARKING AND APPROVALS

CE mark	CE marked
ROHS mark	ROHS complaint

Description

Code	Type	Power consuption W	Initial luminous flux lm	Color, K	Weight kg	IP	IK
600151532101	DPS255 LED042 40W PC I 740 100	40	4200	4000	13	66	08
600151532102	DPS255 LED063 60W PC I 740 100	60	6300	4000	13	66	10
