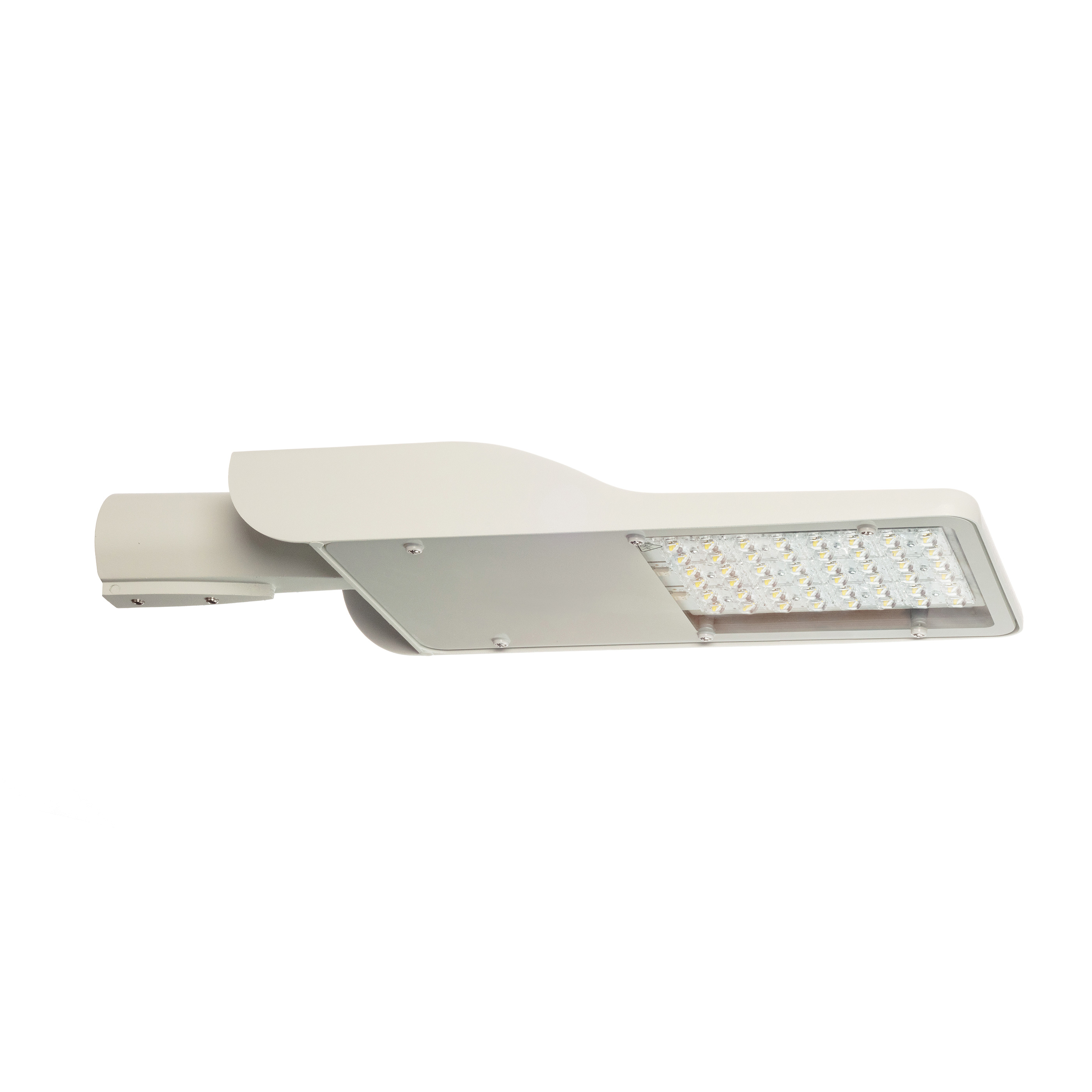

MALMÖ MIDI

DKS 675

Benefits:

Long life ceramic package LED chips by OSRAM – CCT 3000/4000/5700K @ CRI >70 , service lifetime >100000hrs ;
Modest modern design of MALMÖ luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light colour temperatures satisfies all demands for city street lighting.
The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.
selection of light distributions for roads and area lighting – low ageing PMMA lenses by LEDIL

Downloads:

Photometric IES

Recomendations

TYPE

Product type	MALMÖ MIDI DKS 675

ELECTRICAL PARAMETERS

Driver efficiency nominal	up to 0.92
Driver failure ratio	<10% at 50000 or 100000 hours depends on type
Driver type	Built in PHILIPS Xitanium Outdoor driver
Electrical isolation class IEC	Safety class I as a standard, II on request
Input Frequency	50-60 Hz
LED current ripple %	<(4-30) depends on type
Mains voltage index	230 – 240 V / 50 – 60 Hz
Nominal input voltage range	202..254 or 198…264, depends on type
Power factor nominal	up to 0.98
Power range	81-107W depending on type
Surge protection	4/6 kV

LIGHTING PERFORMANCE

CCT	3000K, 4000K, 5700K
Color rendering index, CRI	>70
Initial color shift, SDCM	<5
Light distribution	Asymmetric for roads, areas, walkways, pedestrian crossings and other types on request
Light source	Modules with OSRAM long life ceramic package LED chips with silicone lens diodes
LOR	up to 0,94
Luminaire lumen output range, lm	9300….12300 lm depending on type
Photobiological safety	RG1
Type of optic	Low ageing PMMA lenses by LEDIL

CONSTRUCTION AND MATERIALS

Dimensions LxWxH	537x257x82
Effective protected area	-0.02
Housing colour	RAL 7035
Housing material	Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
Impact resistance	IK08
Ingress protection	IP66

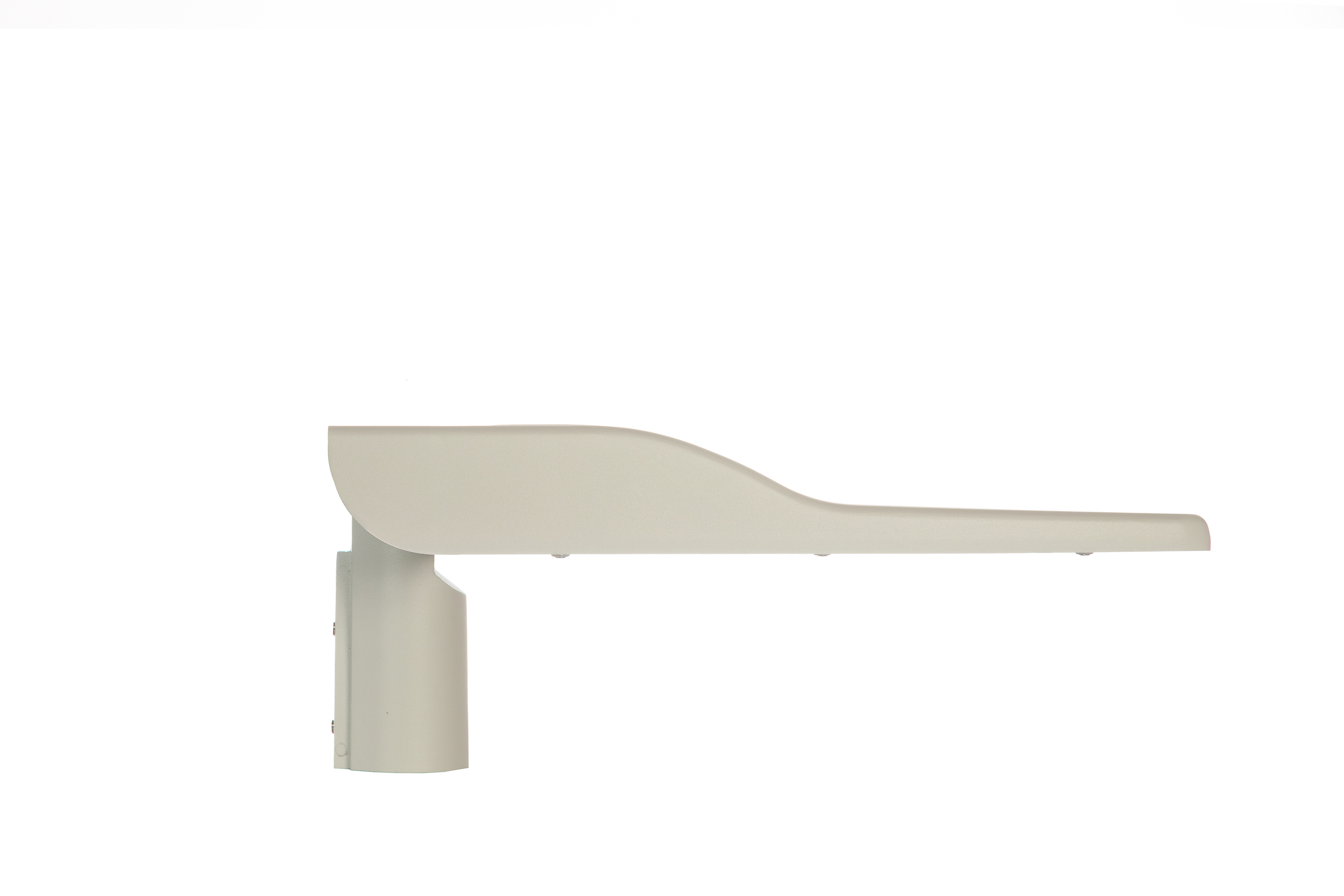

Installation options	Post top or side entry installation 40-60mm with tilt regulation 0/5/10/15 dgr
Optical cover	Extra clear toughened flat glass
Windage area	no more 0,138sq.m above/below and 0,0437sq.m side position

OPERATION AND MAINTENANCE

Electrical connection	0.4m cable as standard or 5….15m cable as other options on request
Maintenance	Opening with screw
Maintenance of lumen output	100000 hours – L90B10
Operating temperature range	-40…+35 C, typical for exact values
Application	• Urban road and streets • Residential roads and paths • Pedestrian crossroad

MARKING AND APPROVALS

CE mark	CE marked
ROHS mark	ROHS complaint
