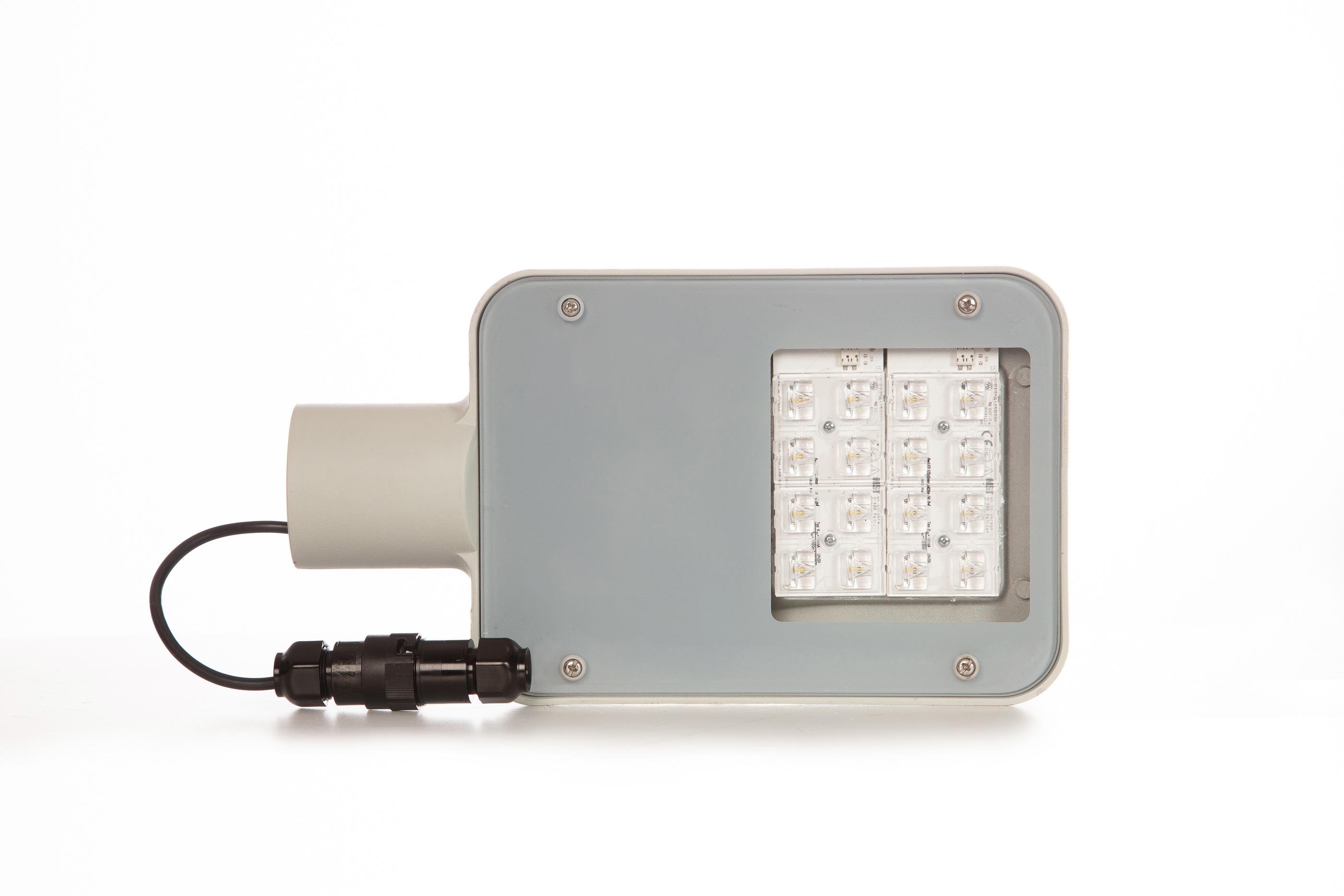

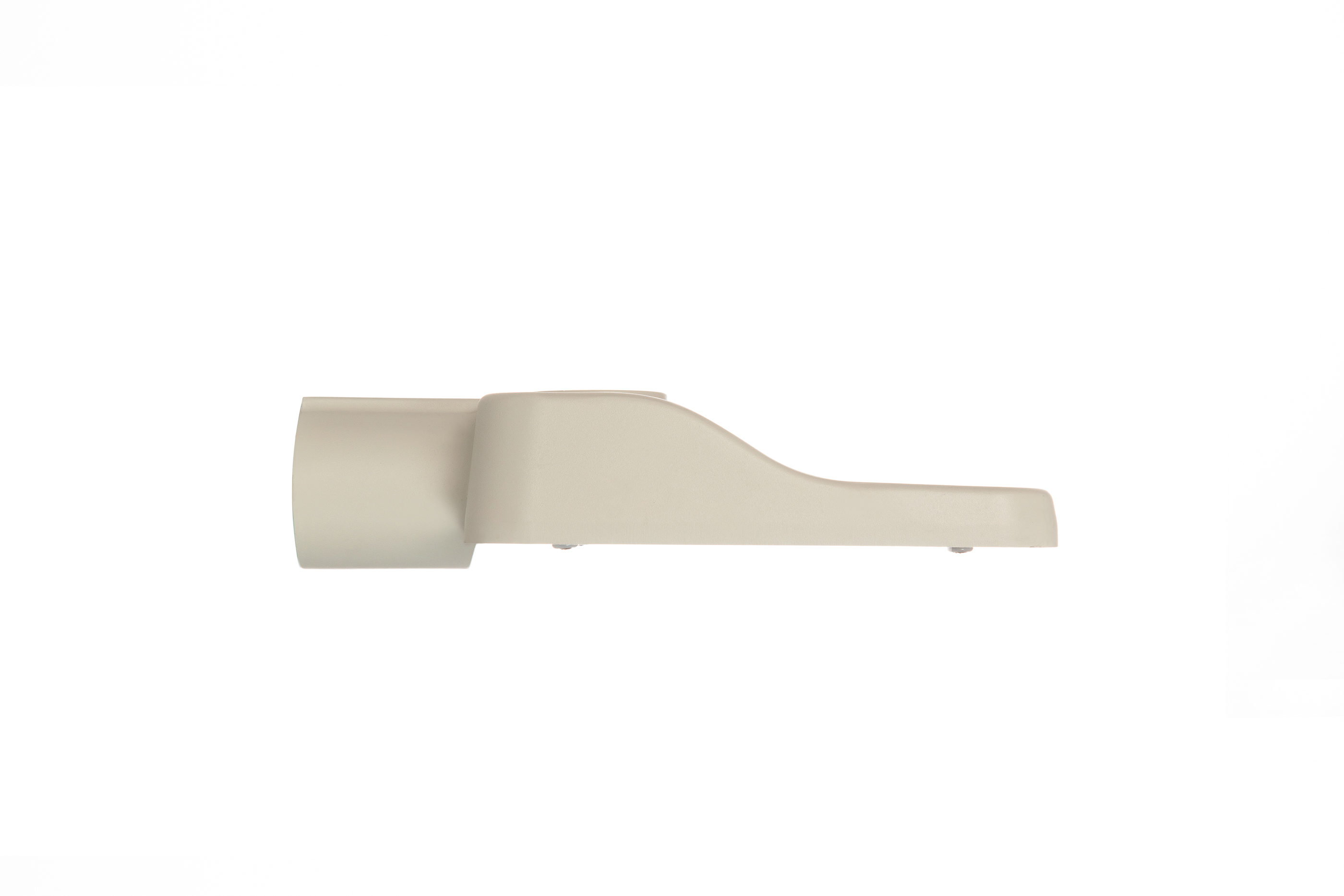

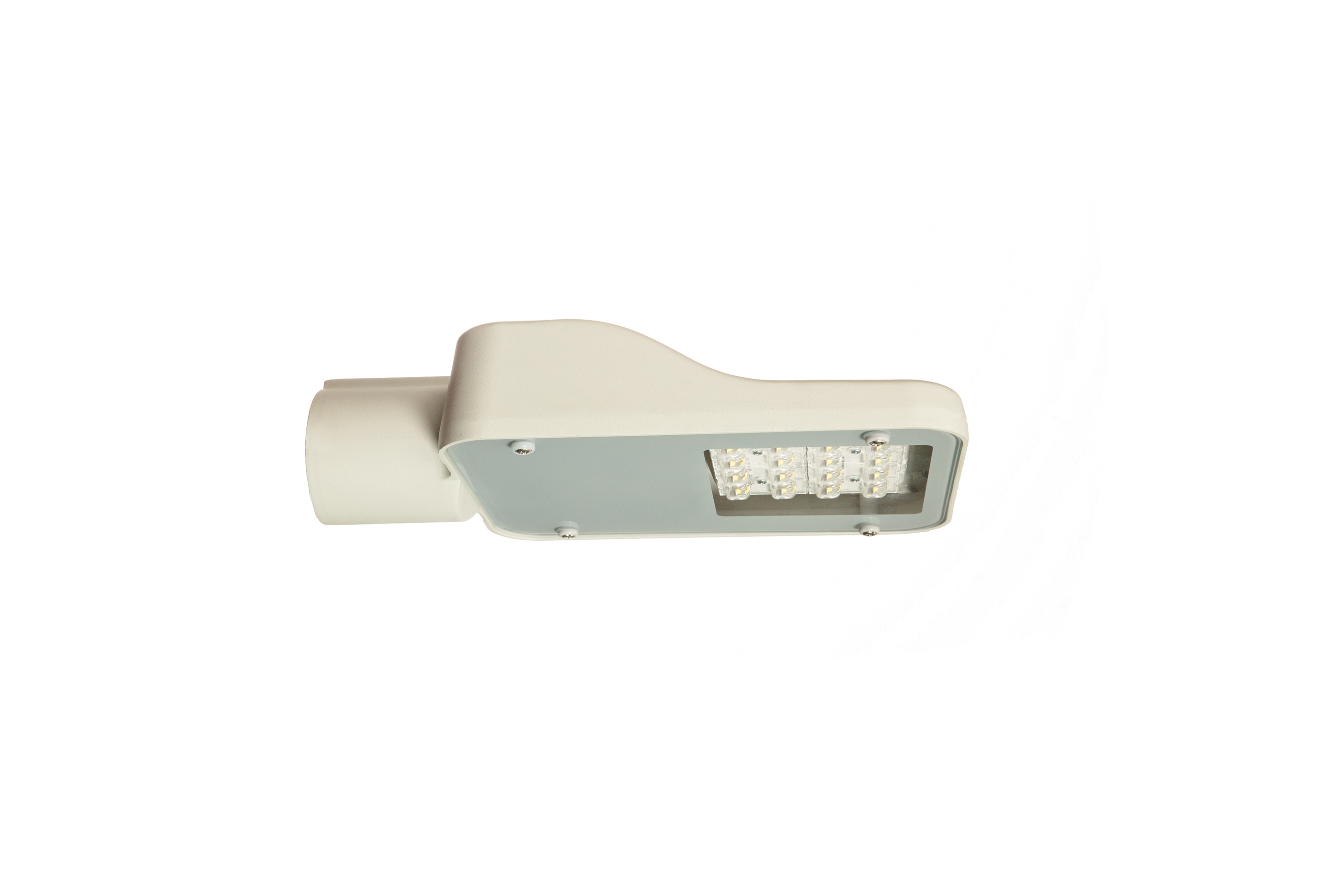

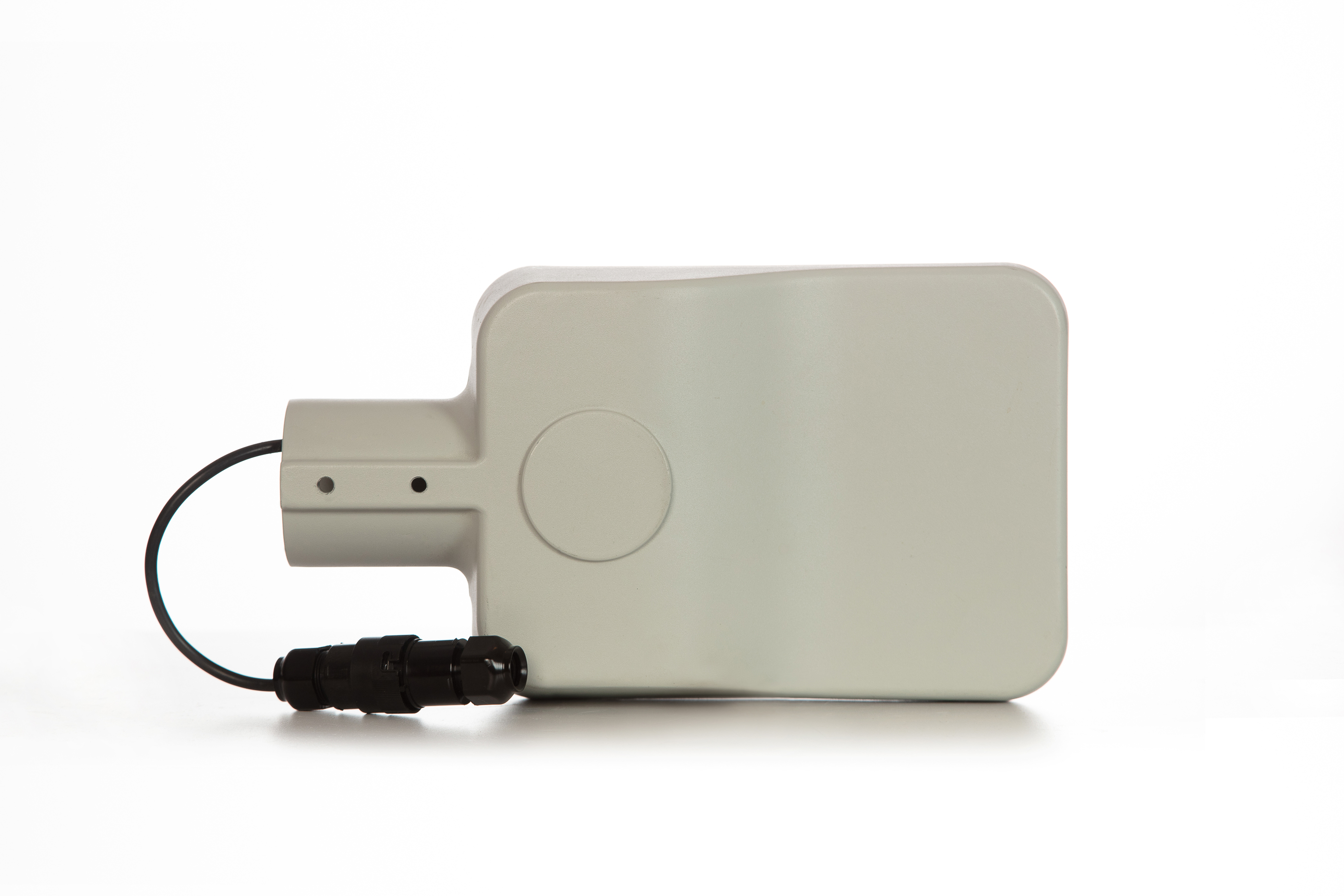

MALMÖ MICRO

220 1 CE F

DKS 673



Benefits:

  • Modest modern design of MALMO luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light color temperatures satisfies all demands for city street lighting.
  • The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.
  • selection of light distributions for roads and area lighting – low ageing PMMA lenses by LEDIL

Downloads:

DIAL    Photometric LDT

pdf-icon    Datasheet PDF

pdf-icon    Mounting instruction

Categories: , Tags: , , ,
TYPE
Product type

MALMÖ MICRO DKS 673
ELECTRICAL PARAMETERS
Driver efficiency nominal

up to 0.92

Driver failure ratio

<10% at 50000 or 100000 hours depends on type

Driver type

Built in PHILIPS Xitanium Outdoor driver

Electrical isolation class IEC

Safety class I as a standard, II on request

Input Frequency

50-60 Hz

LED current ripple %

<(4-30) depends on type

Mains voltage index

230 – 240 V / 50 – 60 Hz

Nominal input voltage range

202..254 or 198…264, depends on type

Power factor nominal

up to 0.98

Power range

23-41W depending on type

Surge protection

6/10 kV standard
LIGHTING PERFORMANCE
CCT

3000K, 4000K

Color rendering index, CRI

>70

Initial color shift, SDCM

<5

Light distribution

Asymmetric for roads, areas, walkways, pedestrian crossings and other types on request

Light source

Modules with OSRAM OS LED chips

LOR

up to 0,94

Luminaire lumen output range, lm

2400….5000 Lm depending on type

Photobiological safety

RG1

Type of optic

Low ageing PMMA lenses by LEDIL
CONSTRUCTION AND MATERIALS

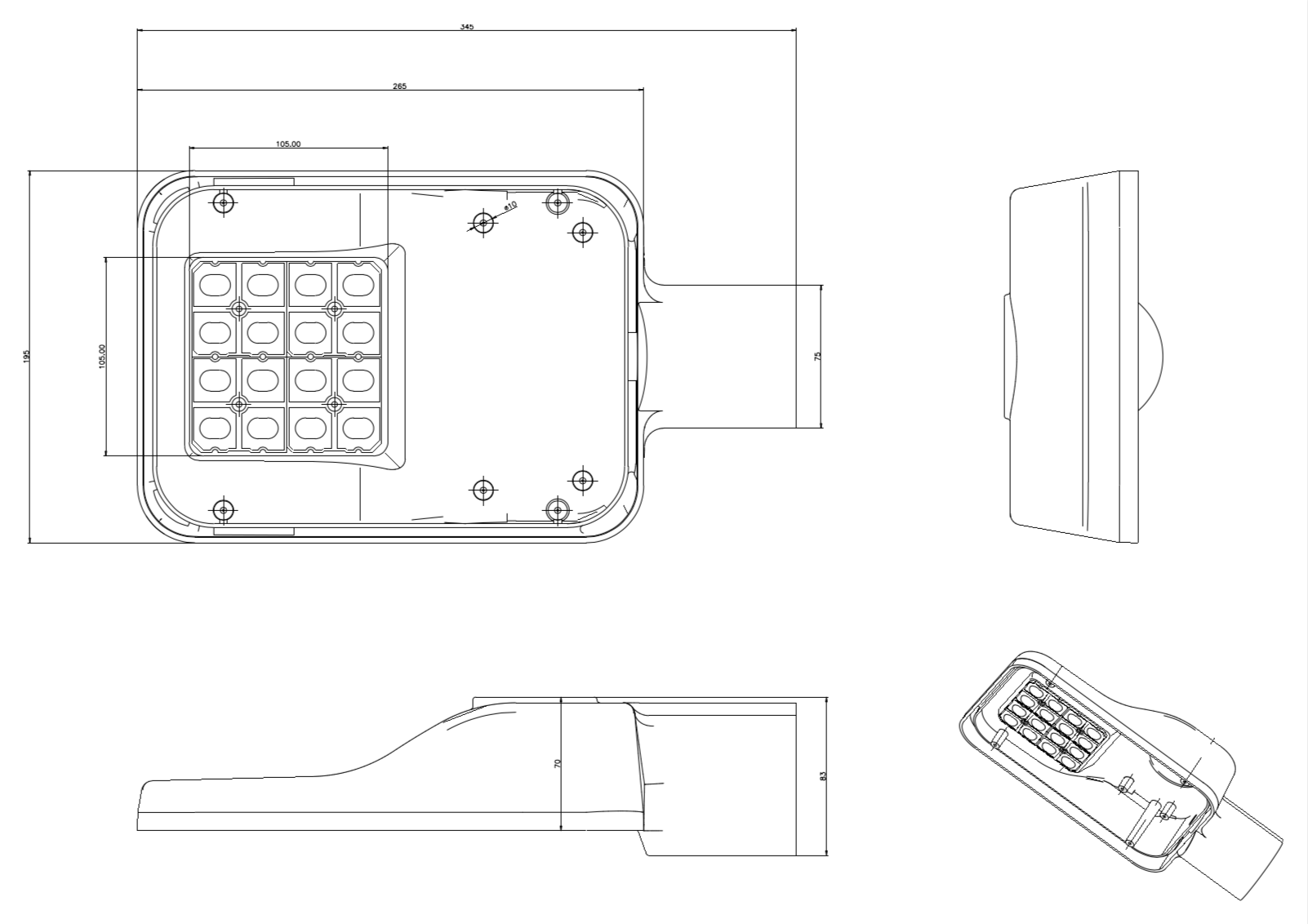

Dimensions LxWxH

345x195x83

Effective protected area

-0.02

Housing colour

RAL 7035

Housing material

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts

Impact resistance

IK08

Ingress protection

IP66

Installation options

Side entry installation 40-60mm without regulation

Optical cover

Extra clear toughened flat glass

Windage area

no more 0,067sq.m above/below and 0,028sq.m side position
OPERATION AND MAINTENANCE
Electrical connection

0,4m cable as standard or 5….8m cable as other options on request

Maintenance

Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only

Maintenance of lumen output

100000 hours – L90B10

Operating temperature range

-40…+35 C, typical for exact values

Application

• Urban road and streets • Residential roads and paths • Pedestrian crossroad
MARKING AND APPROVALS
CE mark

CE marked

ROHS mark

ROHS complaint

Description

Code
Type
Power
consumption, W
Flux, lm
Efficacy, lm/W
Weight,
kg
600151401072
DKS673 LED056 41W 740 I NB2 IC0
41
5630
137
3.2
600151401073
DKS673 LED029 21W 740 I NB2 IC0
21
2850
136
3.2
600151401074
DKS673 LED050 41W 730 I NB2 IC0
41
4950
120
3.2
600151401075
DKS673 LED025 21W 730 I NB2 IC0
21
2500
119
3.2
