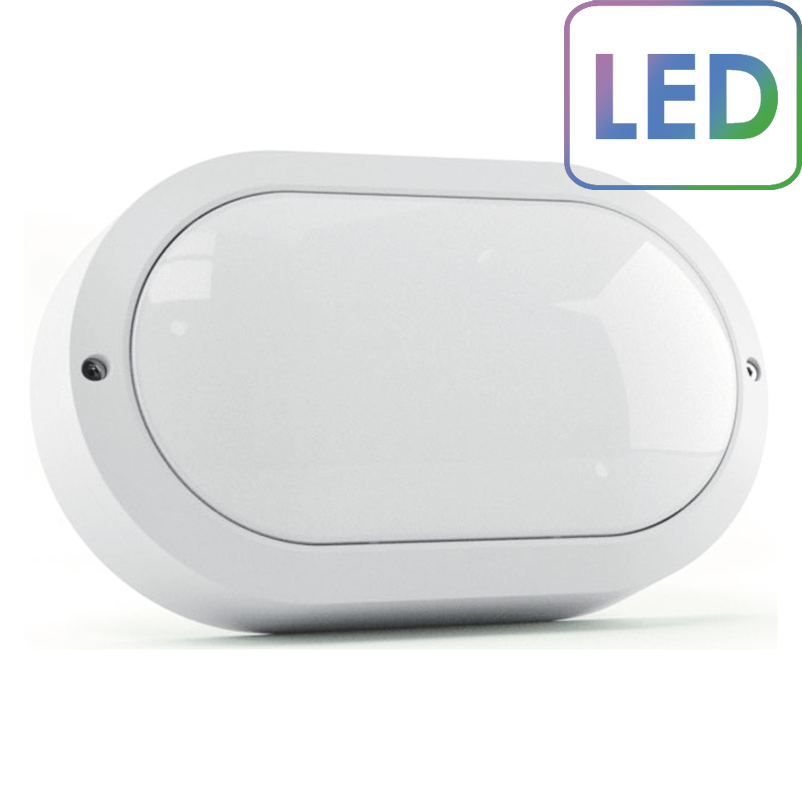

DWG 212 LUNAR

Benefits:

Aluminium base and PC reflector
Direct replacement for traditional wall-mounted luminaires
Complete range covering all application requirements in one product
Up to 55% energy savings compared with luminaires with PL-C lamps

Downloads:

Photometric IES

Categories: Indoor Luminaires, Wall mounted Tags: Corridors, Emergency exits, Office, Outdoor safety lighting, Parking garages, Public entrance areas, Staircases, ware

FAMILY INFORMATION
PRODUCT FAMILY RANGE

More

Type	DWG 212 Lunar
Light source	LED module
Driver	Driver included
Input voltage	220 – 240 V
Power factor	0,95
Power consumption	12-22 W depending on type
Initial luminous flux	1000 – 1800 lm depending on type
Initial LED luminaire efficacy	78 lm/W
Light color	Warm White – 3000 K Neutral White – 4000 K
Color rendering index (CRI)	>80
Operating temperature range	-40 to +40 °C
Optical cover	Polycarbonate diffuser
Body material	Aluminium
Color	White (standart version). Aviable any by RAL
Installation	Individual
Impact resistance	IK08
Ingress protection	IP65
Electrical safety	Class I
Application	• Corridors • Staircases • Public entrance areas • Emergency exits • Parking garages • Outdoor safety lighting

Description

Code	Type	Power, W	Initialluminous flux	Color, K	Diffuser	Ingress protection
700151265001	DWG 212 Lunar LED010 12W Opal 830 I	12	1000	3000	Opal	IP 65
700151265002	DWG 212 Lunar LED010 12W Opal 840 I	12	1000	4000	Opal	IP 65

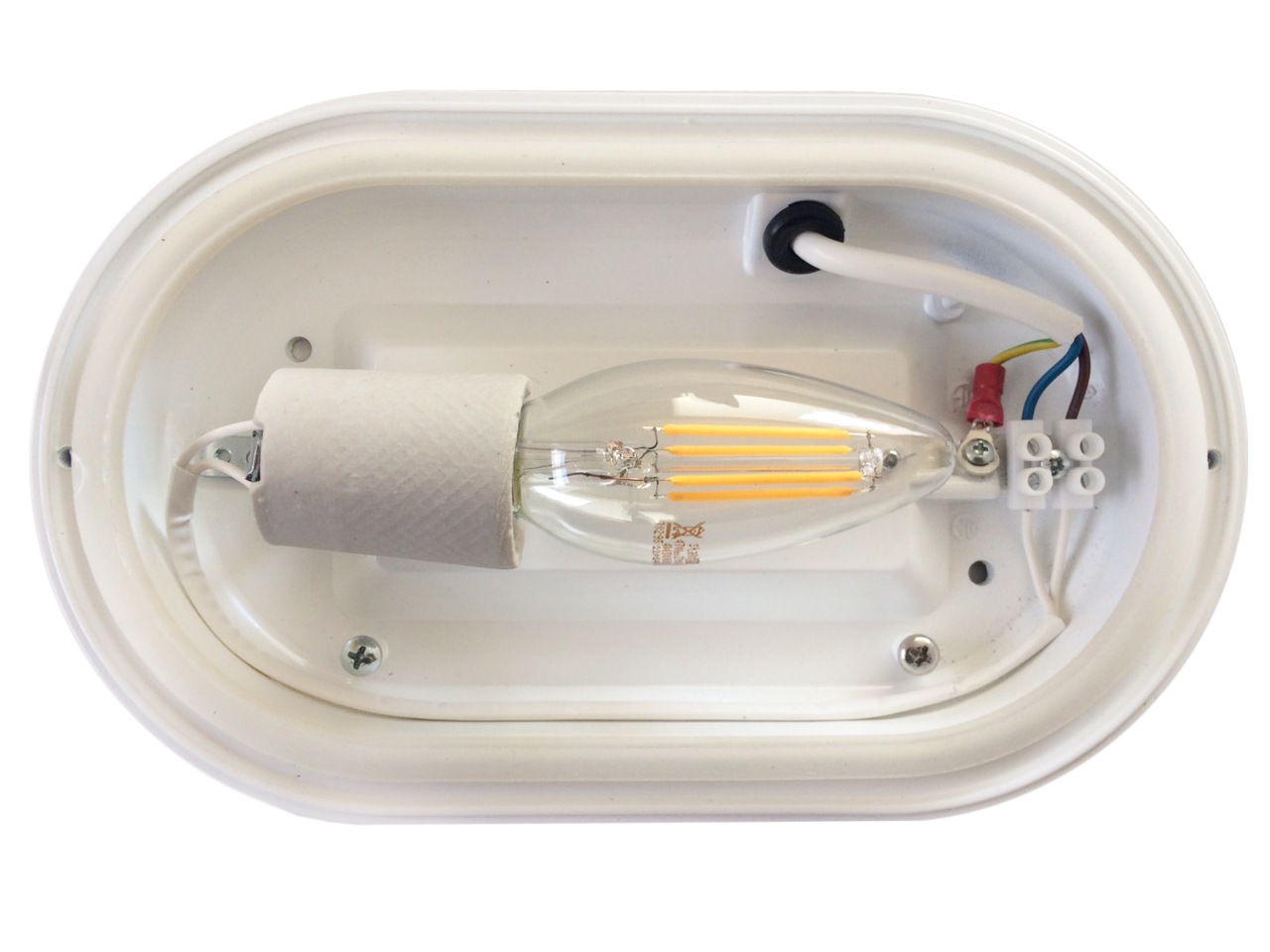

700151265017	DWG 212 Lunar LED 1xE14 OPAL I MAX 22W	n/a	n/a	n/a	Opal	IP 65
