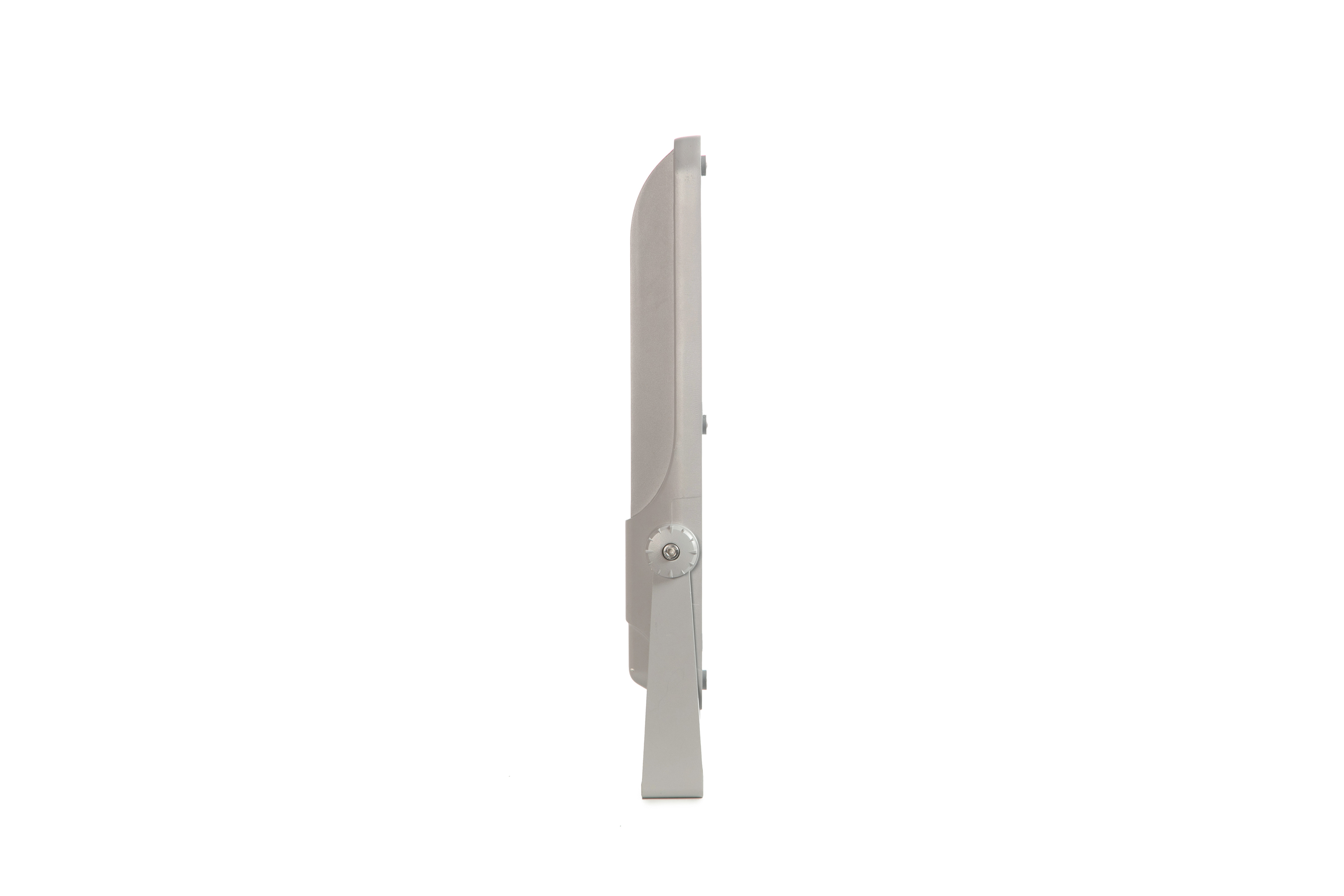

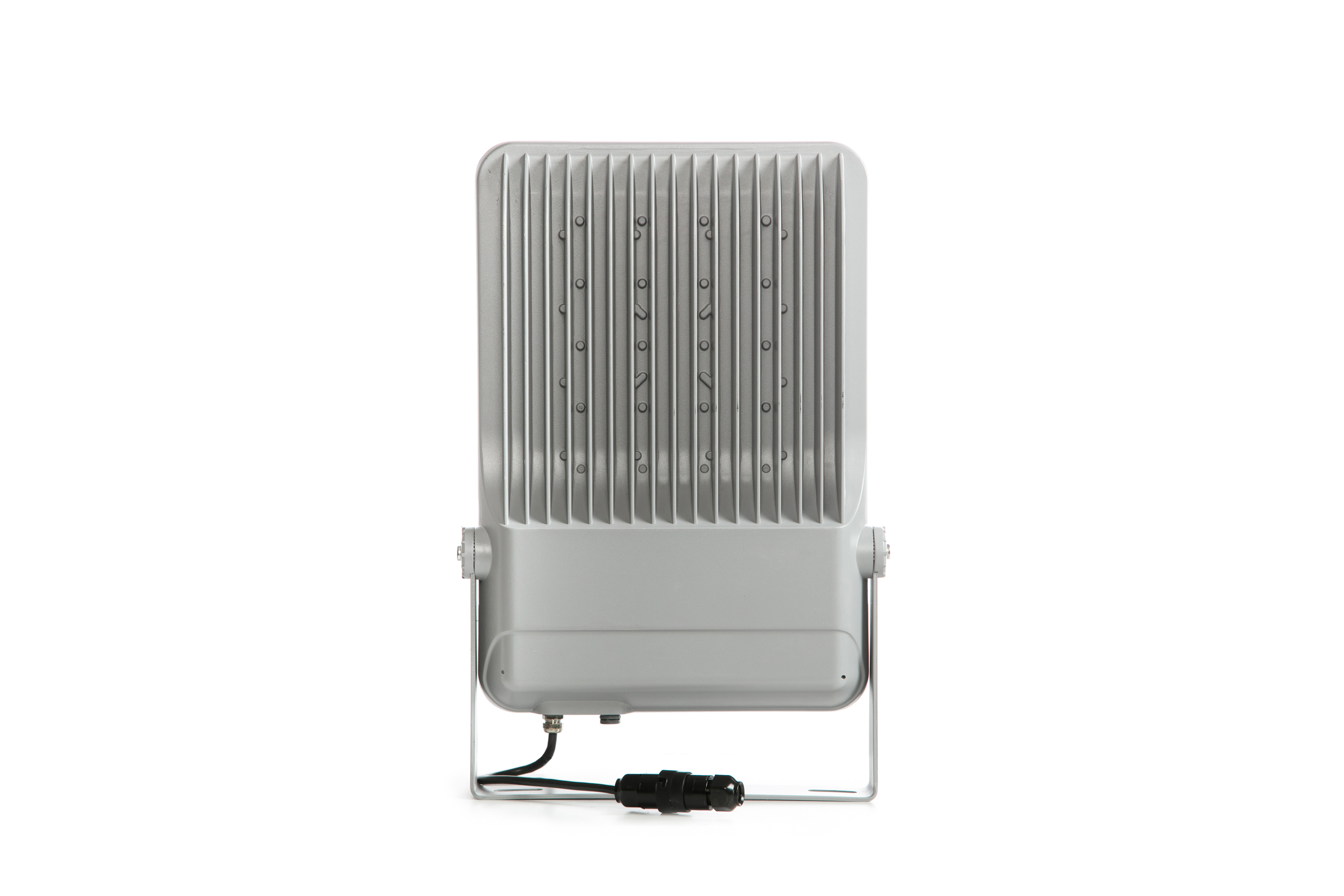

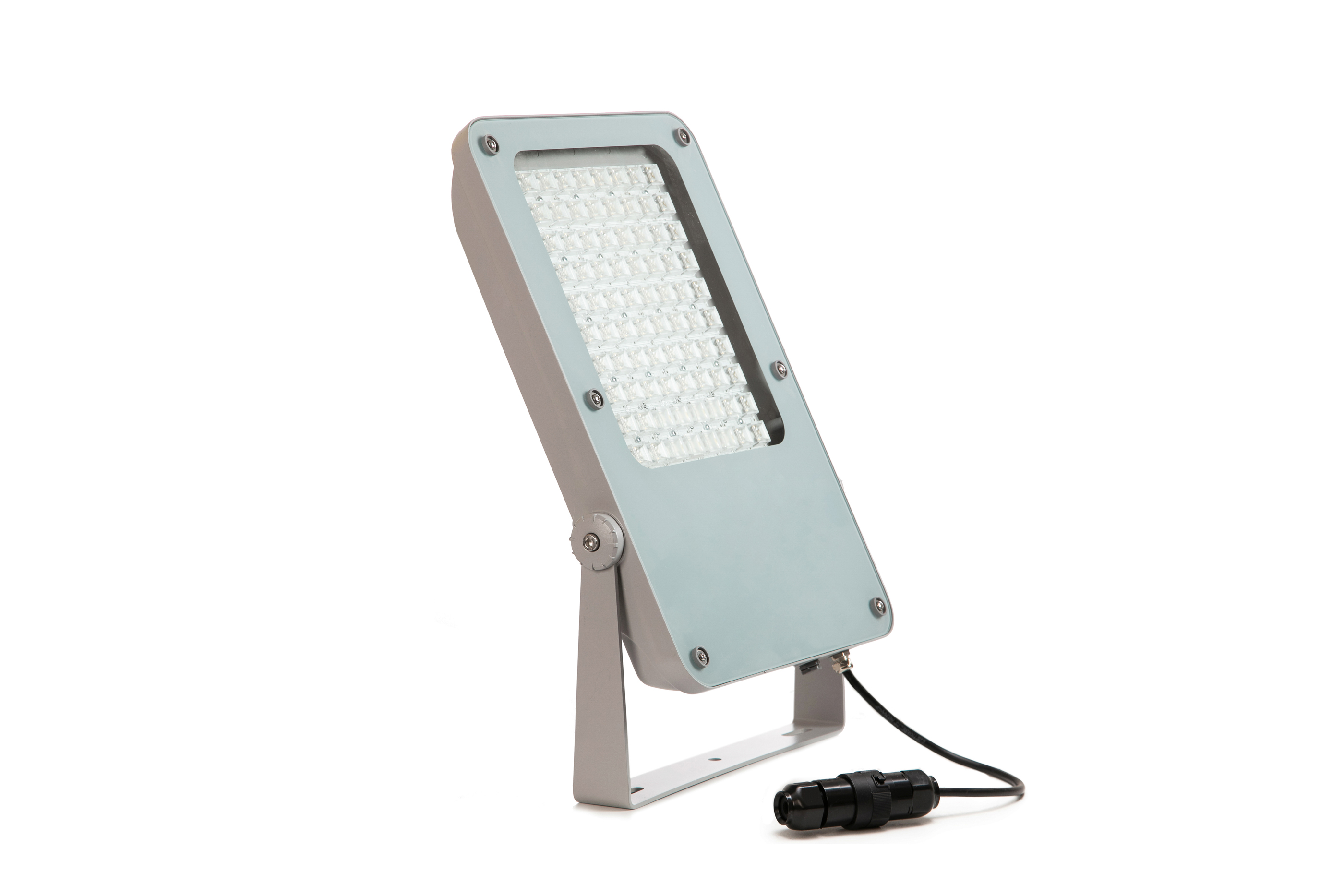

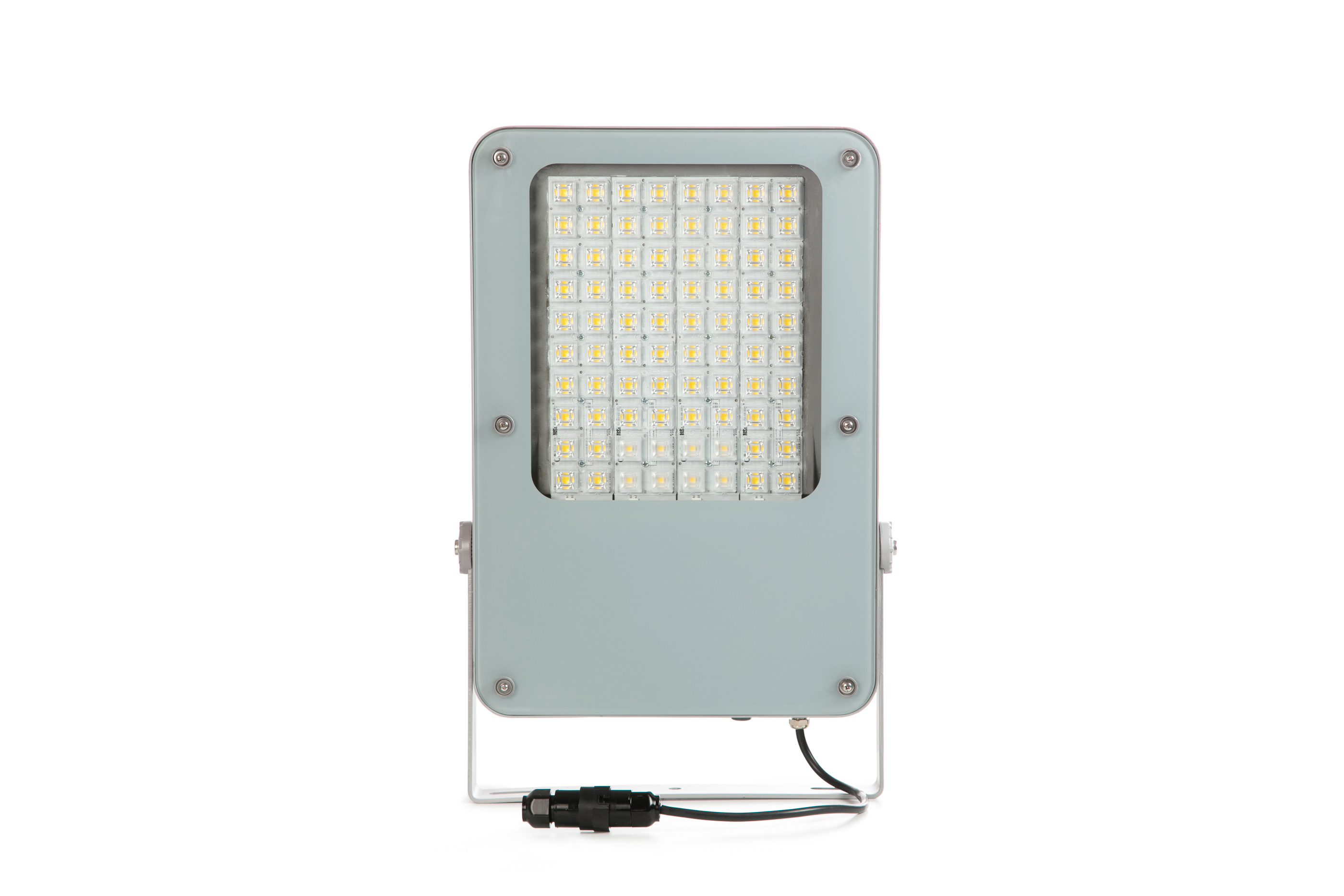

DKF 294 ODIN gen2

ik08 220
F

Benefits:

  • Entry level LED luminaire with lowest initial capital invesment
  • Slim aesthetic design
  • Essential reducing energy consuption with Philips driver
  • Reliable quality
  • Energy efficiency up to 150 lm/W
  • Asymmetrical and symmetrical optics

Downloads:

DIAL

Photometric IES
DIAL

Photometric LDT

pdf-icon



Datasheet PDF

pdf-icon



Mounting instructions PDF

Categories: , Tags: , , , ,
ELECTRICAL PARAMETERS
Driver efficiency nominal

up to 0.92

Driver failure ratio

<10% at 50000 hours

Driver type

Built in PHILIPS Xitanium outdoor driver or Meanwell depends on type

Electrical isolation class IEC

Safety class I as a standard, II on request

Input Frequency

50-60 Hz

LED current ripple %

<(4-30) depends on type

Mains voltage index

230 – 240 V / 50 – 60 Hz

Nominal input voltage range

202..254 or 198…264, depends on type

Power factor nominal

up to 0.98

Power range

123-181W depending on type

Surge protection

4/6 kV
LIGHTING PERFORMANCE
CCT

3000K, 4000K, 5700K

Color rendering index, CRI

>70

Initial color shift, SDCM

<5

Light distribution

Asymmetric for areas ASWD, Symmetric RS48, Symmetric RS23

Light source

Modules with OSRAM LED chips

LOR

up to 0,94

Luminaire lumen output range, lm

18200….26700 Lm depending on type

Photobiological safety

RG1

Type of optic

Low ageing PMMA lenses by LEDIL
CONSTRUCTION AND MATERIALS
Dimensions LxWxH

532x347x68

Effective protected area

At horizontal position 0.052

Housing colour

Grey

Housing material

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts

Impact resistance

IK08

Ingress protection

IP66

Installation options

U-shape mounting bracket fixed with standard bolts and nuts. No need open for electrical connection

Optical cover

Extra clear toughened flat glass

Windage area

no more 0,185sq.m above/below and 0,036sq.m side position
OPERATION AND MAINTENANCE
Electrical connection

0.4m cable as standard

Maintenance

Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only, no internal cleaning required

Maintenance of lumen output

50 000 hours – L90B10

Application

• Bilboards/advertising lighting • Landscape features • Security and amenity lighting • General lighting
MARKING AND APPROVALS
CE mark

CE marked

ROHS mark

ROHS complaint

Description

Code Type LED current, A Initial luminous flux, lm Power, W L90/B10, Hours Weight, kg
600151431319 DKF294 LED182 123W 740 I ASWD IC0 0,7 18200 123 50 000 8,5
600151431320 DKF294 LED189 123W 740 I RS48 IC0 0,7 18900 123 50 000 8,5
600151431311 DKF294 LED214 140W 740 I RS48 IC0 0,7 21400 140 50 000 8,5
600151431312 DKF294 LED206 140W 740 I ASWD IC0 0,7 20600 140 50 000 8,5
600151431313 DKF294 LED267 172W 740 I RS48 IC0 0,7 26700 172 50 000 8,5
600151431314 DKF294 LED258 172W 740 I ASWD IC0 0,7 25800 172 50 000 8,5
Eco Version
600151431804 DKF294 LED260 189W I 740 ASWD 1,05 26000 189 30 000 8,5
600151431807 DKF294 LED267 189W I 740 RS48 1,05 26700 189 30 000 8,5
600151431812 DKF294 LED230 190W I 740 RS23 1,05 24300 190 30 000 8,5
