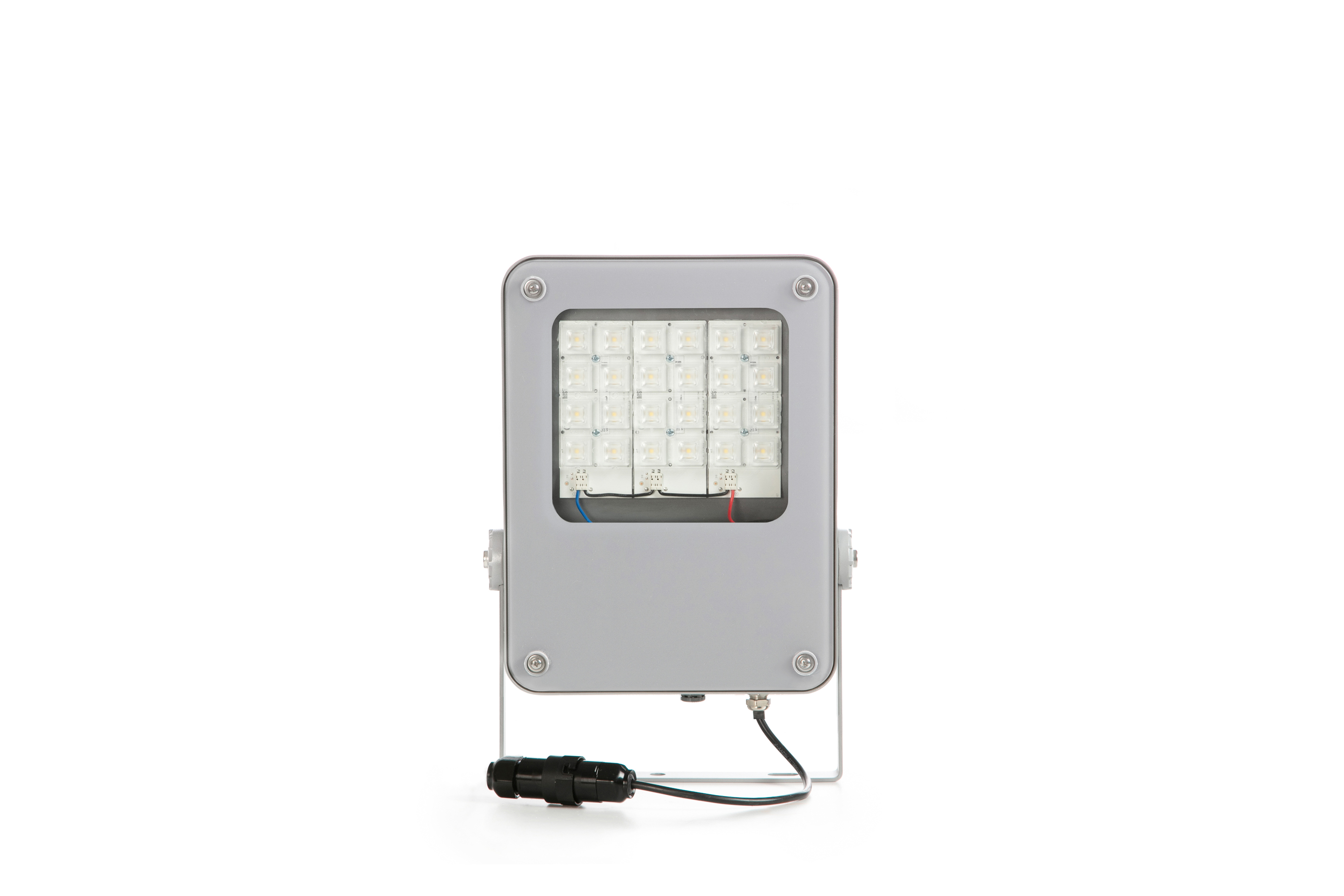

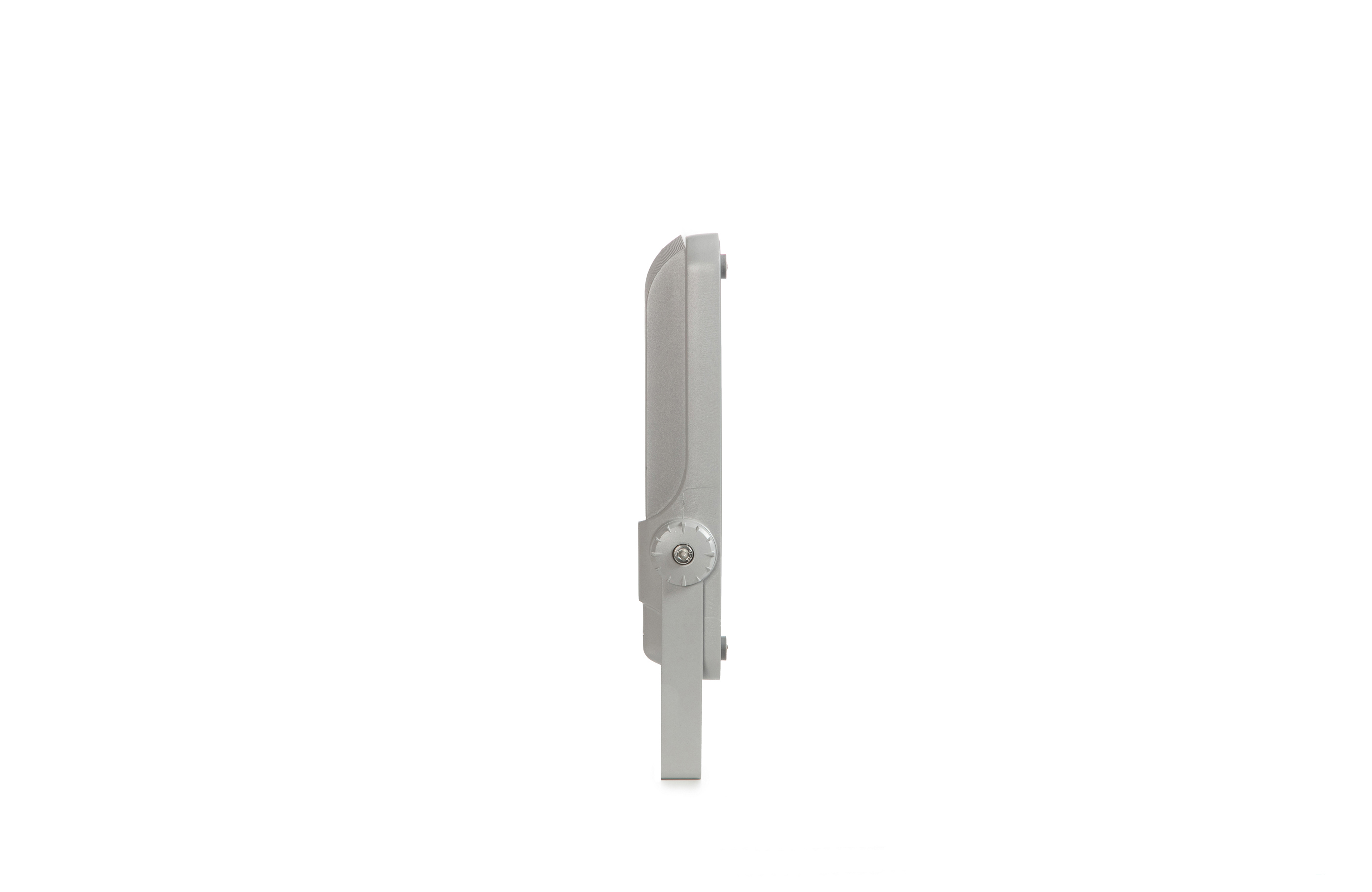

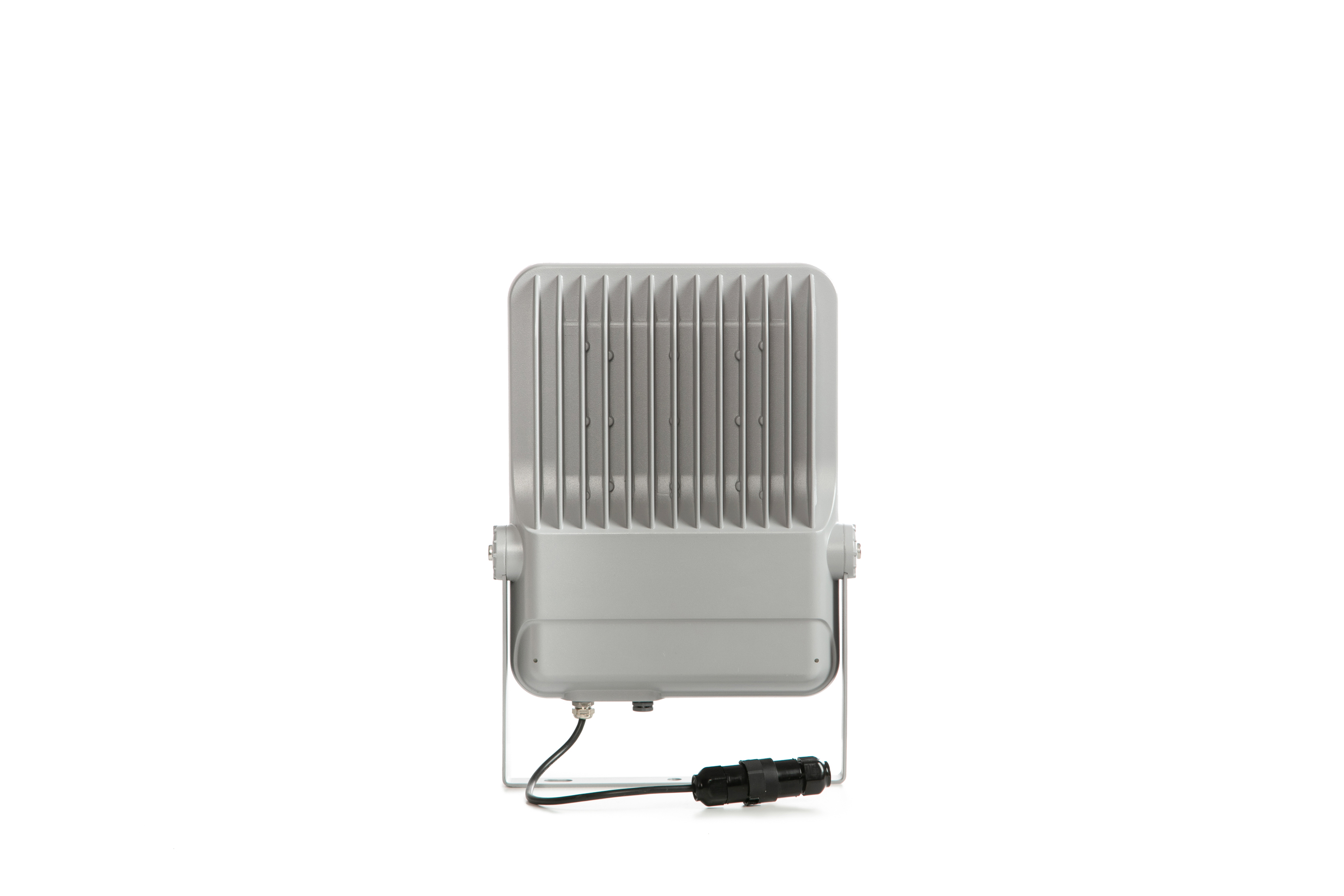

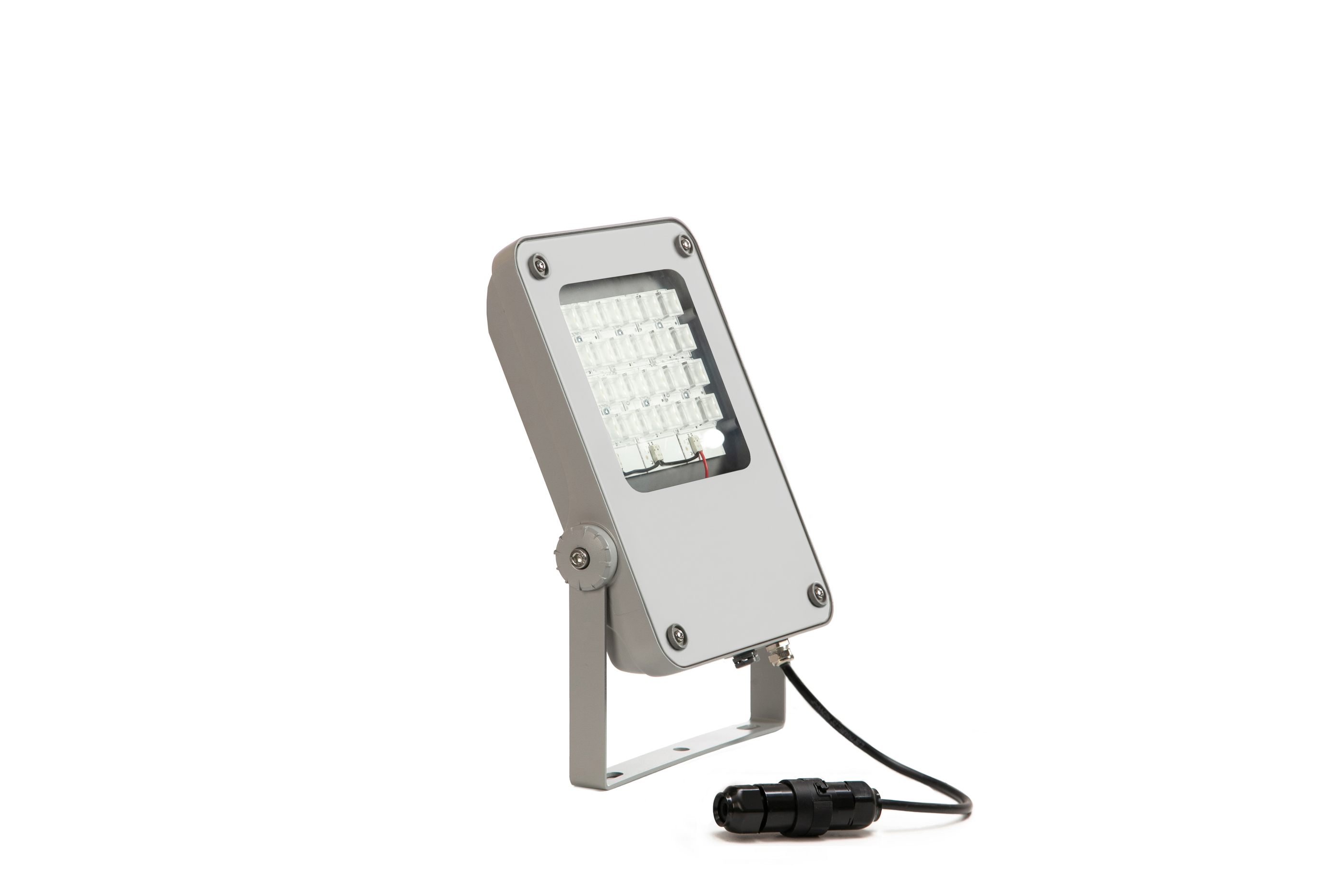

DKF 291 ODIN gen2

ik08 220
F

Benefits:

  • Entry level LED luminaire with lowest initial capital invesment
  • Slim aesthetic design
  • Essential reducing energy consuption with Philips driver
  • Reliable quality
  • Energy efficiency up to 150 lm/W
  • Asymmetrical and symmetrical optics

Downloads:

DIAL

Photometric IES
DIAL

Photometric LDT

pdf-icon



Datasheet PDF

pdf-icon



Mounting instructions PDF

Categories: , Tags: , , , ,
ELECTRICAL PARAMETERS
Driver efficiency nominal

up to 0.92

Driver failure ratio

<10% at 50000 hours

Driver type

Built in PHILIPS Xitanium Outdoor driver

Electrical isolation class IEC

Safety class I as a standard, II on request

Input Frequency

50-60 Hz

LED current ripple %

<(4-30) depends on type

Mains voltage index

230 – 240 V / 50 – 60 Hz

Nominal input voltage range

202..254 or 198…264, depends on type

Power factor nominal

up to 0.98

Power range

35-55W depending on type
LIGHTING PERFORMANCE
CCT

3000K, 4000K, 5700K

Color rendering index, CRI

>70

Initial color shift, SDCM

<5

Light distribution

Asymmetric for areas ASWD, Symmetric RS48, Symmetric RS23

Light source

Modules with OSRAM LED chips

LOR

up to 0,94

Luminaire lumen output range, lm

5300….8000 Lm depending on type

Photobiological safety

RG1

Type of optic

Low ageing PMMA lenses by LEDIL
CONSTRUCTION AND MATERIALS
Dimensions LxWxH

335x250x59,7 mm

Effective protected area

At horizontal position 0.052

Housing colour

Grey

Housing material

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts

Impact resistance

IK08

Ingress protection

IP66

Installation options

U-shape mounting bracket fixed with standard bolts and nuts. No need open for electrical connection

Optical cover

Extra clear toughened flat glass

Windage area

no more 0,083sq.m above/below and 0,02sq.m side position
OPERATION AND MAINTENANCE
Electrical connection

0.4m cable as standard

Maintenance

Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only, no internal cleaning required

Maintenance of lumen output

50 000 hours – L90B10

Application

• Bilboards/advertising lighting • Landscape features • Security and amenity lighting • General lighting
MARKING AND APPROVALS
CE mark

CE marked

ROHS mark

ROHS complaint

Description

EOC
Type
LED current, A
Initial luminous flux, lm
Power, W
L90/B10, Hours
Weight, kg
600151431301 DKF291 LED053 35W 740 I ASWD IC0 0,7 5300 35 50 000 3,4
600151431302 DKF291 LED055 35W 740 I RS48 IC0 0,7 5500 35 50 000 3,4
600151431303 DKF291 LED078 53W 740 I ASWD IC0 0,7 7800 53 50 000 3,4
600151431304 DKF291 LED080 53W 740 I RS48 IC0 0,7 8000 53 50 000 3,4
Eco Version
600151431801 DKF291 LED078 55W 740 I RS48 IC0 1,05 7800 55 30 000 3,4
600151431805 DKF291 LED075 55W 740 I ASWD IC0 1,05 7500 55 30 000 3,4
600151431809 DKF291 LED066 55W I 740 RS23 IC0 1,05 6600 55 30 000 3,4
