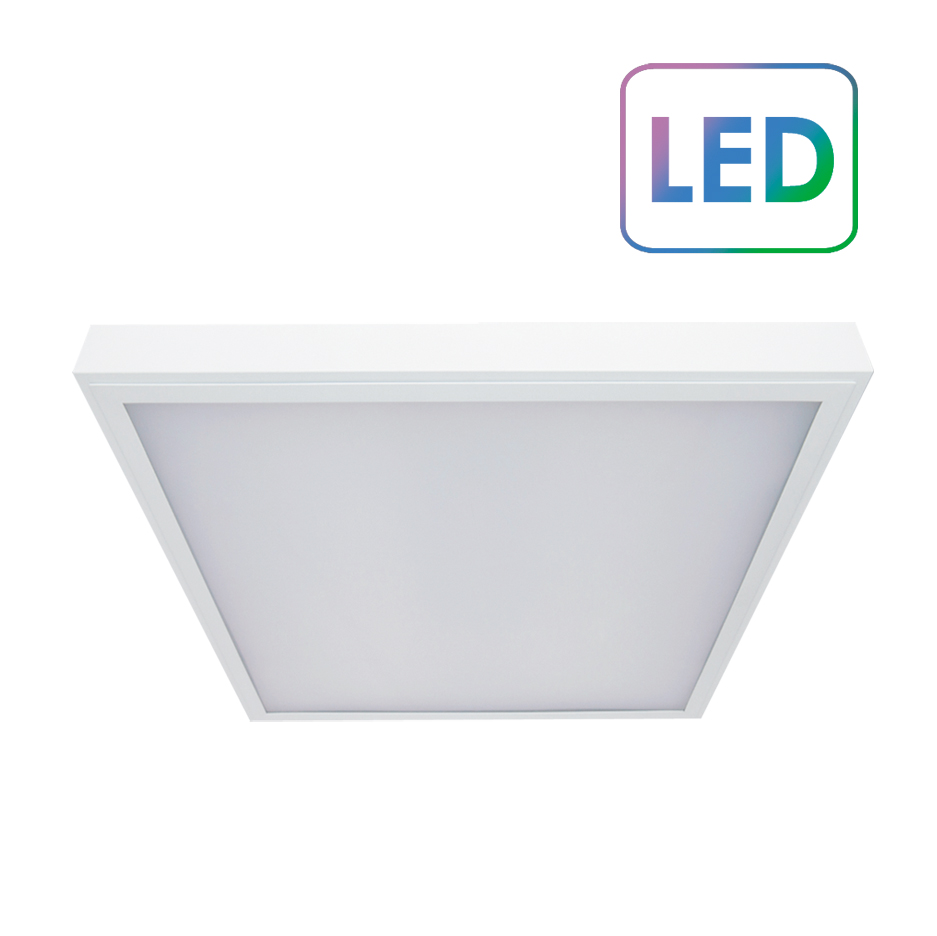

DBO 111

Type	DBO 111
Celling type	Exposed T-bar ceiling, suspended, surface
Light source	LED module
Driver	Philips CertaDrive 40W 360mA 110V 230V or Xitanium 36W 0.12-0.4A 115V 230V depending on type, included
Input voltage	220 to 240 V
Power factor	0,95
Power consumption	38 W depending on type
Initial luminous flux	3800 lm depending on type
Initial LED luminaire efficacy	100 lm/W depending on type
Light color	Warm White – 3000 K on request Neutral White – 4000 K as a standard Cool White – 6500 K on request
Color Rendering Index (CRI)	> 80
Operating temperature range	0 to +40 °C
Optical cover	Opal diffuser
Body material	Steel
Color	White
Installation	Individual; lay-in in exposed ceiling grids Suspended, surface
Impact resistance	IK02
Ingress protection	IP20
Electrical safety	Class I
Application	• Offices • Open-plan • Meeting rooms • Cell offices • Circulation areas • Healthcare • Hospitality

Description

Code	Type	Power, W	Initial luminous flux	Initial LED luminaire efficacy lm/wt	Color, K	Ingress protection code
700151311005	DBO 111 LED 38W OPAL 840 I	38	3750	98	4000	IP20
700151311008	DBO111 LED 38W Opal 840 DALI	38	3750	98	4000	IP20
700151311009	DBO111 LED 38W Opal 840 EMG3H1	38	3750	98	4000	IP20
