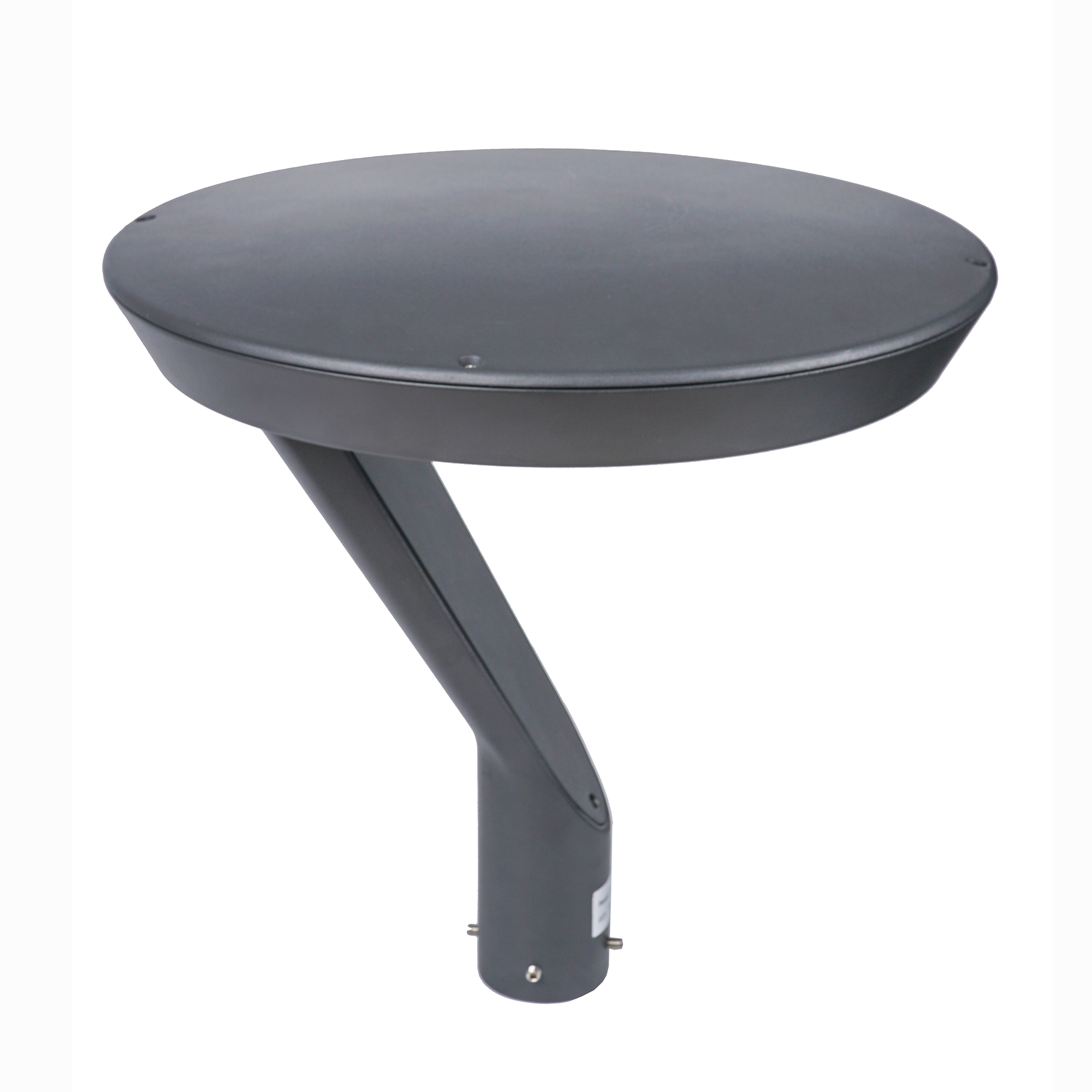

BERGEN

ip66

220

Downloads:

Photometric LDT

Category: Urban lighting Tags: street, urban

FAMILY INFORMATION
PRODUCT FAMILY RANGE

TYPE

Product type	DPS 455

ELECTRICAL PARAMETERS

Driver efficiency nominal	up to 0.92
Driver failure ratio	<10% at 50000 or 100000 hours depends on type
Driver type	Built in PHILIPS Xitanium Outdoor driver
Electrical isolation class IEC	Safety class I as a standard, II on request
Input Frequency	50-60 Hz
LED current ripple %	<(4-30) depends on type
Mains voltage index	230 – 240 V / 50 – 60 Hz
Nominal input voltage range	202..254 or 198…264, depends on type
Power factor nominal	up to 0.98
Power range	32-80 W depending on type
Surge protection	4/6 kV

LIGHTING PERFORMANCE

CCT	3000K, 4000K, 5700K
Color rendering index, CRI	>70
Initial color shift, SDCM	<5
Light distribution	Wide beam as standard. AS,NB optics on request
Light source	Modules with OSRAM long life ceramic package LED chips with silicone lens diodes
LOR	up to 0,89
Luminaire lumen output range, lm	4000 – 10200 lm depending on type
Photobiological safety	RG1
Type of optic	Low ageing PMMA lenses by LEDIL

CONSTRUCTION AND MATERIALS

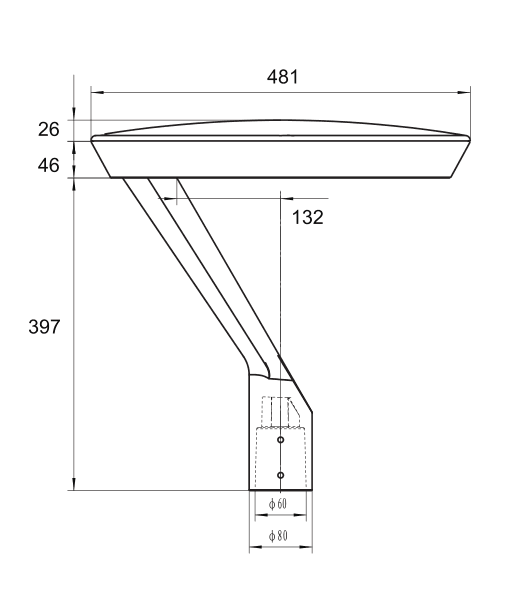

Dimensions LxH	481×469
Housing colour	Dark grey
Housing material	Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
Impact resistance	IK09
Ingress protection	IP66
Installation options	Post top installation 40-60mm
Optical cover	Extra clear toughened flat glass
Windage area	no more 0,18sq.m above/below and 0,025sq.m side position

OPERATION AND MAINTENANCE

Electrical connection	0.4m cable with IP66 connector as standard
Maintenance	Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only
Maintenance of lumen output	100000 hours – L90B10
Operating temperature range	-40…+35 C, typical for exact values
Application	• Parks • Squares • Boulevards • Embankments • Recreation areas • Residential roads and paths • Pedestrian crossroad

MARKING AND APPROVALS

CE mark	CE marked
ROHS mark	ROHS complaint

Description

Code	Type	Power consuption W	Initial luminous flux lm	Color, K	Weight kg	IP	IK
600151532201	DPS455 LED102 80W PC I 740 40-60	80	10200	4000	13	66	09
600151532202	DPS455 LED090 70W PC I 740 40-60	70	9000	4000	13	66	09
600151532203	DPS455 LED055 42W PC I 740 40-60	42	5500	4000	13	66	09
600151532204	DPS455 LED040 32W PC I 740 40-60	32	4000	4000	13	66	09
