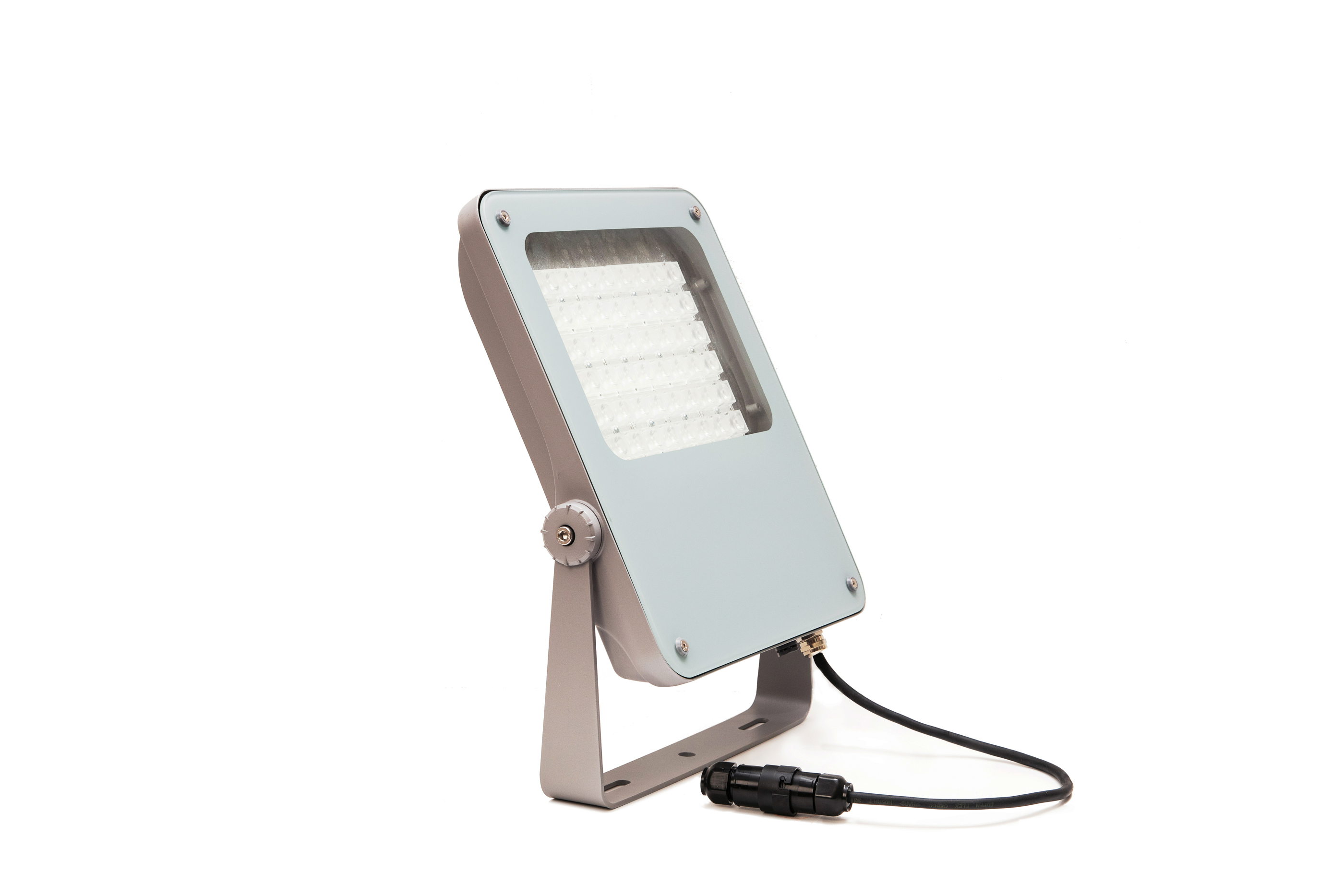

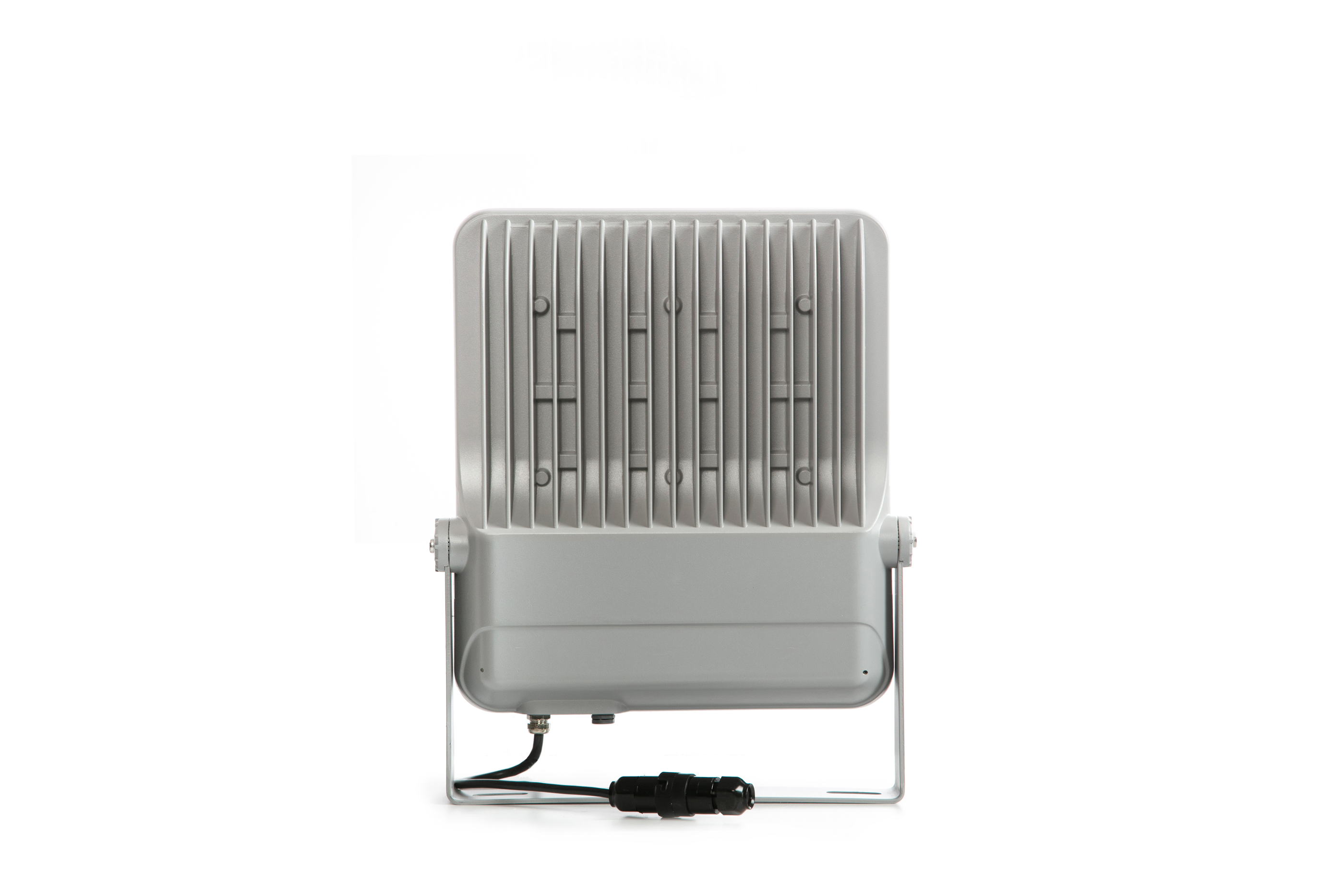

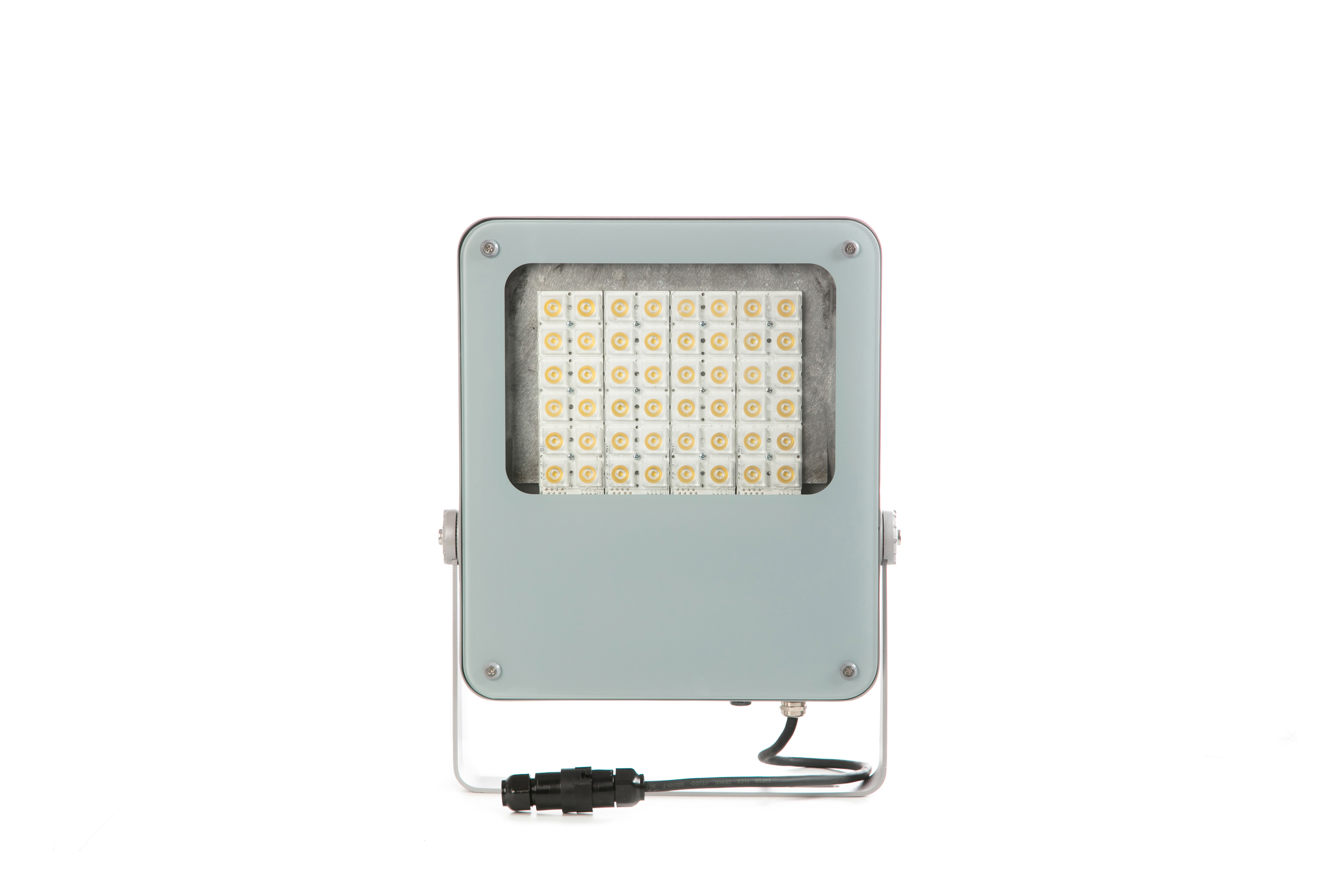

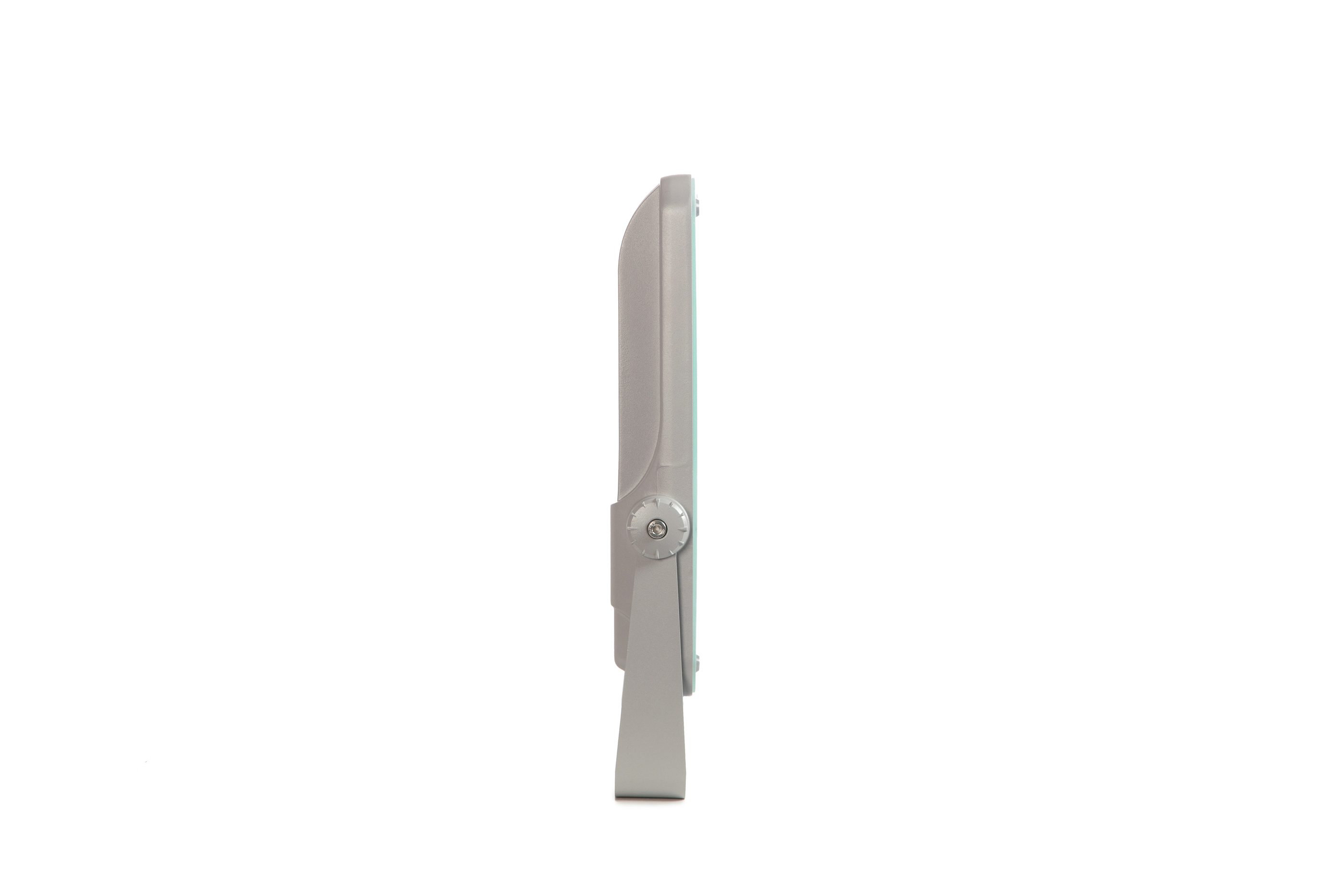

DKF 293 ODIN gen2

ik08 220
F

Benefits:

  • Entry level LED luminaire with lowest initial capital invesment
  • Slim aesthetic design
  • Essential reducing energy consuption with Philips driver
  • Reliable quality
  • Energy efficiency up to 150 lm/W
  • Asymmetrical and symmetrical optics

Downloads:

DIAL

Photometric IES
DIAL

Photometric LDT

pdf-icon



Datasheet PDF

pdf-icon



Mounting instructions PDF

Categories: , Tags: , , , ,
TYPE
Product type

DKF 293
ELECTRICAL PARAMETERS
Driver efficiency nominal

up to 0.92

Driver failure ratio

<10% at 50000 hours

Driver type

Built in PHILIPS Xitanium Outdoor driver

Electrical isolation class IEC

Safety class I as a standard, II on request

Input Frequency

50-60 Hz

LED current ripple %

<(4-30) depends on type

Mains voltage index

230 – 240 V / 50 – 60 Hz

Nominal input voltage range

202..254 or 198…264, depends on type

Power factor nominal

up to 0.98

Power range

88-136W depending on type

Surge protection

4/6 kV
LIGHTING PERFORMANCE
CCT

3000K, 4000K, 5700K

Color rendering index, CRI

>70

Initial color shift, SDCM

<5

Light distribution

Asymmetric for areas ASWD, Symmetric RS48, Symmetric RS23

Light source

Modules with OSRAM LED chips

LOR

up to 0,94

Luminaire lumen output range, lm

13200….19100 Lm depending on type

Photobiological safety

RG1

Type of optic

Low ageing PMMA lenses by LEDIL
CONSTRUCTION AND MATERIALS
Dimensions LxWxH

442x347x64

Effective protected area

At horizontal position 0.052

Housing colour

Grey

Housing material

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts

Impact resistance

IK08

Ingress protection

IP66

Installation options

U-shape mounting bracket fixed with standard bolts and nuts. No need open for electrical connection

Optical cover

Extra clear toughened flat glass

Windage area

no more 0,15sq.m above/below and 0,028sq.m side position
OPERATION AND MAINTENANCE
Electrical connection

0.4m cable as standard

Maintenance

Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only, no internal cleaning required

Maintenance of lumen output

50 000 hours – L90B10

Application

• Bilboards/advertising lighting • Landscape features • Security and amenity lighting • General lighting
MARKING AND APPROVALS
CE mark

CE marked

ROHS mark

ROHS complaint

Description

Code Type LED current, A Initial luminous flux, lm Power, W L90/B10, Hours Weight kg
600151431318 DKF293 LED132 88W 740 I ASWD IC0 0,7 13200 88 50 000 6,3
600151431322 DKF293 LED135 88W 740 I RS48 IC0 0,7 13500 88 50 000 6,3
600151431309 DKF293 LED160 105W 740 I RS48 IC0 0,7 16000 105 50 000 6,3
600151431310 DKF293 LED156 105W 740 I ASWD IC0 0,7 15600 105 50 000 6,3
Eco Version
600151431803 DKF293 LED191 136W I 740 RS48 1,05 19100 136 30 000 6,3
600151431808 DKF293 LED188 136W 740 I ASWD IC0 1,05 18800 136 30 000 6,3
600151431811 DKF293 LED165 138W I 740 RS23 IC0 1,05 16500 138 30 000 6,3
